product Image
Semi Auto Clipping M/C
Model Name
USC-2006
Series
Component Production Line
Data
USC-2006
Manufacturer information
provider logo
Union Tech

Automotive filter equipment manufacturer, Union Tech, Seaming, Tapping, Clipping

Problem with product info?
Update request
Manufacturer
Union Tech
Brand
-
SKU
33712
Product Name
Semi Auto Clipping M/C
Model Name
USC-2006
Size
-
Weight
-
Product Details

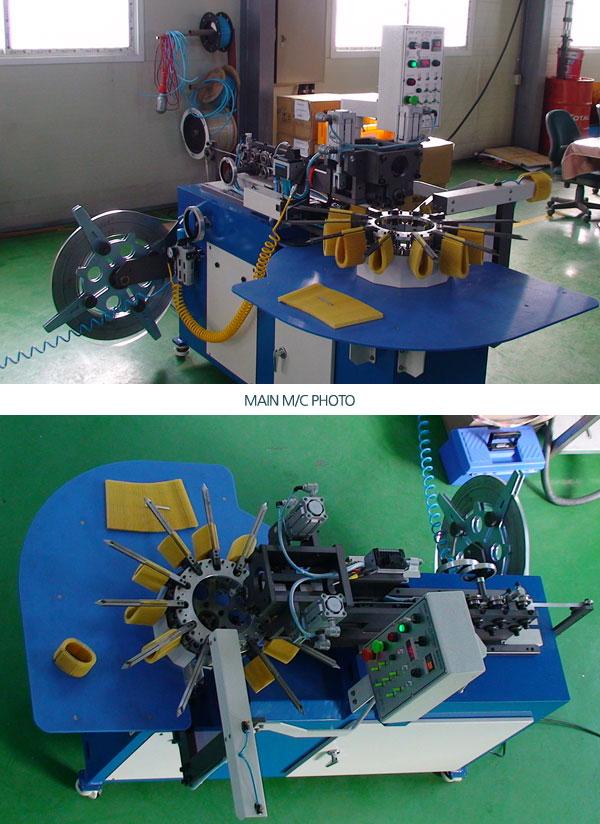

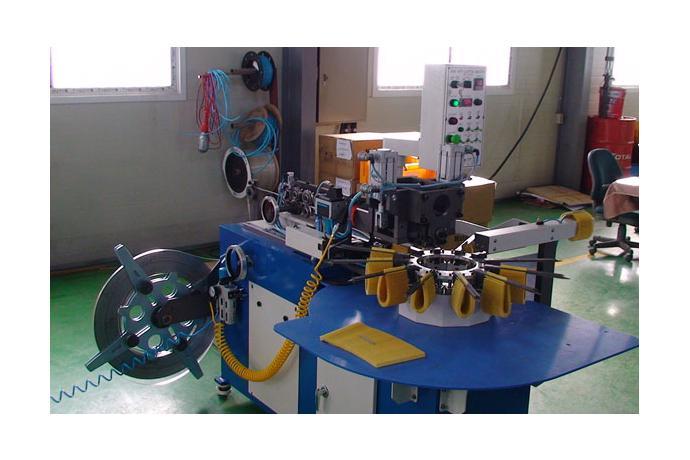

Union Tech Semi Auto Clipping M/C USC-2006

TECHNICAL DESCRIPTION

ㆍPLC CONTROL SYSTEM(W/ INDEX TABLE - 12 STATION)

ㆍPRODUCT CAPACITY : 20~30 pcs/ min

ㆍAVAILABLE PAPER LENGTH : 40~200 mm

ㆍAVAILABLE PLEATED PAPER HEIGHT : 12~35 mm

ㆍELETRCI POWER : 380V x 3 P x 50 /60 Hz

ㆍMAIN AIR PRESSURE : Max. 6 Kgf/Union Tech Semi Auto Clipping M/C USC-2006 1

ㆍCLIP STEEL COIL STANDARD
   A) STEEL THICKNESS : 0.20~0.25mm
   B) STEEL WIDTH : 14mm
   C) COIL ID : 250mm
   D) COIL OD : Max. 800mm

FEATURE

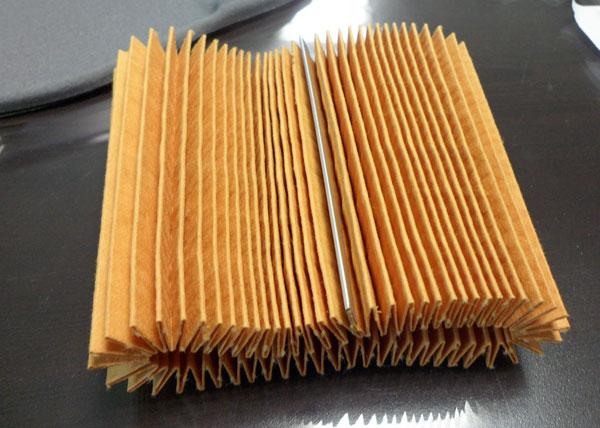

ㆍPAPER PLEATING HEIGHT WILL BE ADJUSTED BY HANDLE TYPE DEVICE WITH USING OF SCALE(UNIT : mm).

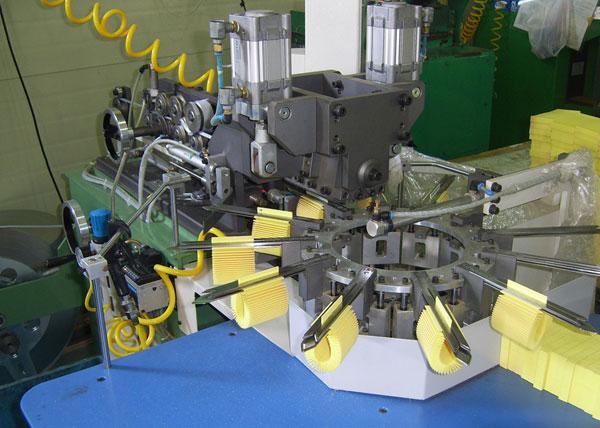

ㆍWHEN PUT IN A PAPER INTO FRONT OF 12 DIFFERENT CLIPPING JIG, THE PAPER WILL BE TRANSFERRED INTO CLIPPING ZONE BY INDEX.

ㆍMANUAL PAPER INSERT & AUTO STEEL FEEDING/ CLIPPING/ CUTTING/ UNLOADING SYSTEM

ㆍEMERGENCY S/W & PRODUCT COUNTER & INDEX SPEED CONTROLLER INSTALLED

ㆍALL PNUMETIC PARTS WILL BE USED BY FESTO BRAND.

Union Tech
Automotive filter equipment manufacturer, Union Tech, Seaming, Tapping, Clipping
Union Tech machines are designed with the highest quality for continued performance in the most demanding of environments. Companies worldwide have embraced the concepts and technologies pioneered by Union Tech, and our machines are now in operation in more than 25 countries around the globe. We appreciate your kind attention to Union Tech which has done systematic study and has made incessant endeavor to produce the safest and the most convenient equipment for the customers, based ton technology and know-how accumulated over the twenty six years since work in filter industrial. With confidence we can assure you that Union Tech will be a dependable partner of promising future and development of your company through strict quality management, fast and exact after service, and far advanced technology for customer’s convenience and satisfaction, and the craftsmanship for the utmost results.
