GENERAL DESCRIPTION

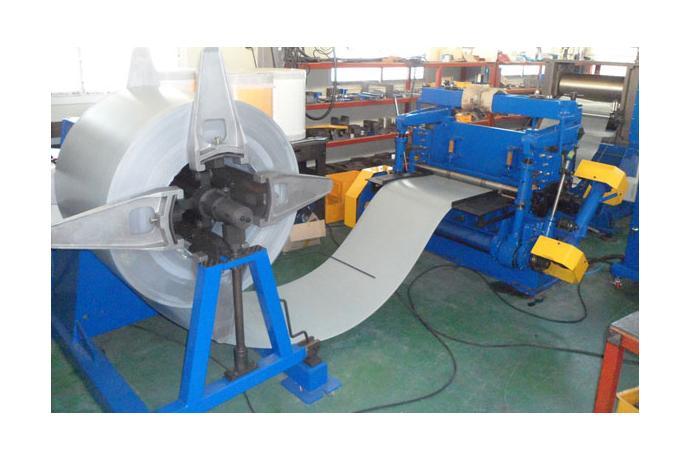

ㆍThis Metal Netting Machine is designed to manufacture a tube, which is inserted inside and outside of automotive air, oil & fuel filters
FEATURE
ㆍIt is run by a mechanical crank axis.
ㆍThe blade of the knife can be changed according to a shape of tube.
ㆍA special system cuts the material according to the arbitrary measurements,
GENERAL SPECIFICATION(BASE ON UMN-700)
ㆍProduct Capacity : 100~500spm
ㆍAvailable Width : Max. 700mm
ㆍAvailable Thickness : 0.40~0.8T
ㆍFeeding Length : 7~20mm
ㆍElectric Power : 380V x 50/60Hz x 3 Phase
ㆍPower Motor : 2.25~7.5Kw
ㆍWorking Stroke : 15~30mm
ㆍMold Change Time : 30~60min
ㆍMachine Size : (W)1300 x (L)1700 x (H) 2000
OPTION
ㆍUncoiler : 2 ton or 3 ton or 5 Ton
ㆍMesh Rolling M/C
ㆍSteel Sharing M/C
ㆍCoil Steel or Sheet
