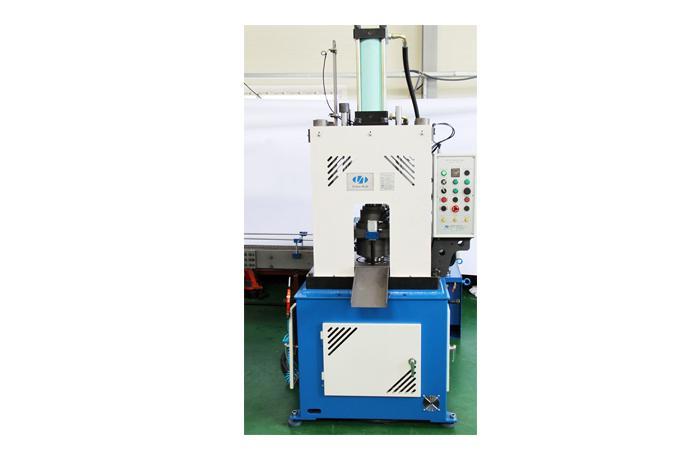

Housing Making M/C for the Trimming Process
Model Name
UHD-20T/30T
Series
HYD Press Line
Data
UHD-20T/30T
Manufacturer information
provider logo
Union Tech

Automotive filter equipment manufacturer, Union Tech, Seaming, Tapping, Clipping

Problem with product info?
Update request
Manufacturer
Union Tech
Brand
-
SKU
33735
Product Name
Housing Making M/C for the Trimming Process
Model Name
UHD-20T/30T
Size
-
Weight
-
Product Details

TECHNICAL DESCRIPTION

ㆍPOWER CAPACITY : 20 TON

ㆍPRODUCTION CAPACITY : 10~14 pcs/ min

ㆍAVAILABLE HOUSING OUTDIA : Union Tech Housing Making M/C for the Trimming Process UHD-20T/30T50~ Union Tech Housing Making M/C for the Trimming Process UHD-20T/30T 1110

ㆍAVAILABLE HOUSING HEIGHT : 50~180mm

ㆍAVAILABLE HOUSING THICKNESS : 0.4~0.6mm

ㆍBOLSTAR SIZE : 420mm x 750mm

ㆍSTROKE MAIN CYLINDER : 300mm

ㆍOIL TANK : 300 Union Tech Housing Making M/C for the Trimming Process UHD-20T/30T 2

ㆍDIE CUSHION : SINGLE TYPE

ㆍCONTROL METHOD : AUTO TRIMMING SYSTEM

ㆍELECTRIC POWER : 380V x 50/ 60Hz x 3P x 25HP

ㆍMACHINE SIZE : W800 x L800 x H2000

ㆍMACHINE WEIGHT : 2,000 kg

APPLICATION

ㆍTHIS MACHINE IS DESIGNED TO MAKE TRIMMING FOR PASSENGER TYPE OIL FILTER BY AUTOMATIC INDEX SYSTEM.

FEATURE

ㆍPLC CONTROL SYSTEM INSTALLED

ㆍAUTO SCRAP SEPARATE SYSTEM

OPTIONAL PART

ㆍTRIMMING MOLD

ㆍHOUSING HOLDING JIG
