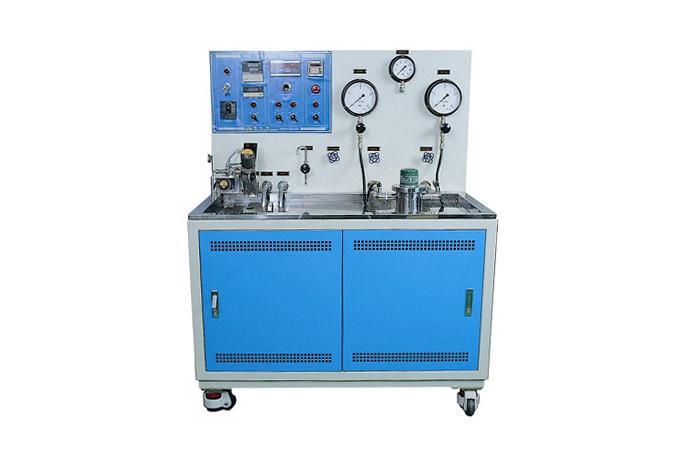

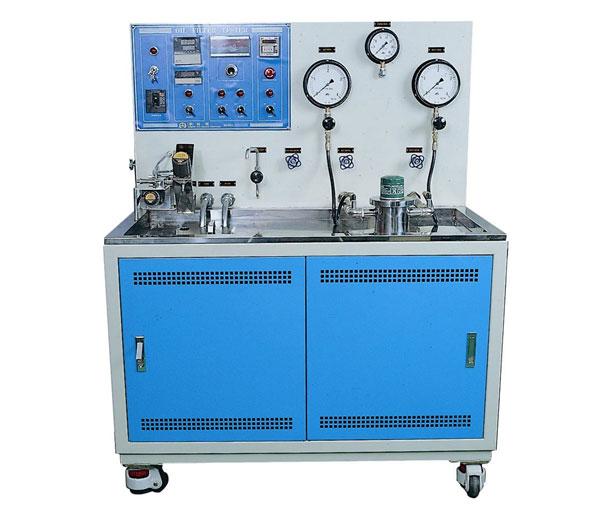

Test Stand M/C
Model Name
UOST-40L
Series
Test Equipment
Data
UOST-40L
Manufacturer information
provider logo
Union TechAutomotive filter equipment manufacturer, Union Tech, Seaming, Tapping, Clipping
Problem with product info?
Update request
Manufacturer
Union Tech
Brand
-
SKU
33782
Product Name
Test Stand M/C
Model Name
UOST-40L
Size
-
Weight
-
Product Details

TECHNICAL DESCRIPTION

ㆍFlow Rate : 4~40 Liter/ min(for Passenger Type)

ㆍUsing Oil Temperature : 0°C~80°C +3°C (MAX. 100°C)

ㆍTemp. controller : P.I.D Digital

ㆍHeater : 220V x 3Kw

ㆍMotor Controller : Invertor

ㆍPrssure Gauge : 10 kgf /Union Tech Test Stand M/C UOST-40L x 2ea

ㆍfree and friction resistance design as a cover and oil pipe made by staneless steel.

ㆍMachine size : 1,500x1,000x1560(WxDxH)

ㆍ4 caster wheel installed for easy moving.

ㆍBody Material : Staineless Steel 304

APPLICATION

ㆍThis machine designed according to JIS D -1611 & KSR 1040 oil filter test standard method perform to FILTERING EFFICIENCY TEST PRESSURE LOSS TESTING DRAIN BACK FLOW TEST RELIEF VALVE TESTING

ㆍContaminant & Slurry Mixer will be connected with this M/C.

ㆍFurthermore, Centrifuge & Electric Balace Weight will be needed.

OPTIONAL PART

ㆍRecording System

Union TechAutomotive filter equipment manufacturer, Union Tech, Seaming, Tapping, Clipping
Union Tech machines are designed with the highest quality for continued performance in the most demanding of environments. Companies worldwide have embraced the concepts and technologies pioneered by Union Tech, and our machines are now in operation in more than 25 countries around the globe. We appreciate your kind attention to Union Tech which has done systematic study and has made incessant endeavor to produce the safest and the most convenient equipment for the customers, based ton technology and know-how accumulated over the twenty six years since work in filter industrial. With confidence we can assure you that Union Tech will be a dependable partner of promising future and development of your company through strict quality management, fast and exact after service, and far advanced technology for customer’s convenience and satisfaction, and the craftsmanship for the utmost results.
