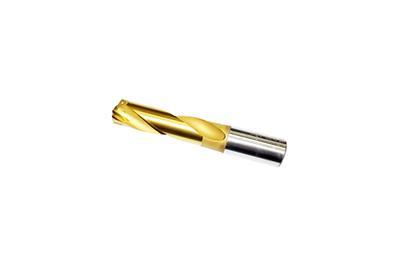

UR Tipped Oil Hole Cupid Drill
Model Name
CUTL5XD
Data
-
Manufacturer information
provider logo
UR. Tools

Cutting tools manufacturer, Drill, End mill and more

Problem with product info?
Update request
Manufacturer
UR. Tools
Brand
-
SKU
61775
Product Name
UR Tipped Oil Hole Cupid Drill
Model Name
CUTL5XD
Size
-
Weight
-
Product Details

(주)유림툴스 UR 팁 오일홀 큐피드 드릴 CUTL5XD

(주)유림툴스 UR 팁 오일홀 큐피드 드릴 CUTL5XD 1

-일반 강의 드릴 작업, 단조강, 냉간 단조강, 가단주철, 합금강, 스테인레스강, 기타 비철 금속류

-Suitable for drilling of general steel, forged steel, cold forged steel, malleable cast iron, alloyed steel, stainless steel and non ferrous metal

(주)유림툴스 UR 팁 오일홀 큐피드 드릴 CUTL5XD 2

-Surface-Treatment : Non-Coating도 가능함

(주)유림툴스 UR 팁 오일홀 큐피드 드릴 CUTL5XD 3

-특수 제작된 Point로 Center Drill이 필요없음

-내부 냉각수 주입방식

-Chip 배출이 탁월하므로 고속가공 및 자동화 라인에 적합

-뛰어난 위치 결정으로 Bush가 필요없음

-깔끔한 면 조도를 보장하므로 Reamer 작업이 필요없음

-Self centering - center drilling is not required

-Supplying coolant through internal hole

-Good chip removal - powerful drilling

-Excellent positioning - Bushi is not necessary

-Special design - reaming is not required

long series

모델번호
EDP NO.
드릴직경 (D1)
Drill Diameter
유효길이(L2)
Effective Length
날길이 (L1)
Flute Length
생크길이
Shank Length
온길이 (L)
Overall Length
생크직경 (D)
Shank Diameter
나선
Helix
경도
Hardness
Length type
Length type
CUTL 5145 14.5 115 95 50 165 20 25 60 5XD
CUTL 5150 15.0 115 95 50 165 20 25 60 5XD
CUTL 5155 15.5 115 95 50 165 20 25 60 5XD
CUTL 5160 16.0 115 95 50 165 20 25 60 5XD
CUTL 5165 16.5 115 95 50 165 20 25 60 5XD
CUTL 5170 17.0 125 105 50 175 20 25 60 5XD
CUTL 5175 17.5 125 105 50 175 20 25 60 5XD
CUTL 5180 18.0 125 105 50 175 20 25 60 5XD
CUTL 5185 18.5 125 105 50 175 20 25 60 5XD
CUTL 5190 19.0 140 120 55 195 25 25 60 5XD
CUTL 5195 19.5 140 120 55 195 25 25 60 5XD
CUTL 5200 20.0 140 120 55 195 25 25 60 5XD
CUTL 5205 20.5 140 120 55 195 25 25 60 5XD
CUTL 5210 21.0 140 120 55 195 25 25 60 5XD
CUTL 5215 21.5 140 120 55 195 25 25 60 5XD
