product Image

TOP

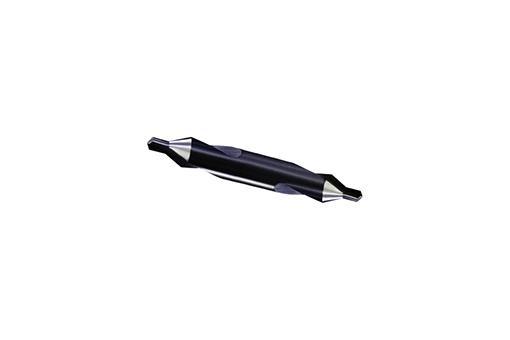

UR Solid Center Drill
Model Name
URCD
Data
-
Manufacturer information
provider logo
UR. ToolsCutting tools manufacturer, Drill, End mill and more
Problem with product info?
Update request
Manufacturer
UR. Tools
Brand
-
SKU
61780
Product Name
UR Solid Center Drill
Model Name
URCD
Size
-
Weight
-
Product Details

(주)유림툴스 UR 솔리드 센터 드릴 URCD

(주)유림툴스 UR 솔리드 센터 드릴 URCD 1

-초미립자(05미크론) 합금 소재 사용으로 가공 소재의 범위가 넓음

-전체적인 나선형의 날 형태로 가공이 매우 효과적

-Made of super micron grain material - wide application of tool.

-Spiral flute - effective cutting.

(주)유림툴스 UR 솔리드 센터 드릴 URCD 2

-Surface-Treatment : Non-Coating도 가능함

※ 아래 목록 이외의 제품은 주문에 의해 제작됩니다.
※ Other size out of the list above are available as per customer's request.

solid carbide (초경)

모델번호
EDP NO.
드릴직경 (D1)
Drill Diameter
날길이 (L1)
Flute Length
온길이 (L)
Overall Length
나선
Helix
경도
Hardness
URCD 1040 1.0X4.0 1.5 35 15 60
URCD 1040 (TiALN) 1.0X4.0 1.5 35 15 60
URCD 1550 1.5X5.0 2 40 15 60
URCD 1550 (TiALN) 1.5X5.0 2 40 15 60
URCD 2060 2.0X6.0 3 45 15 60
URCD 2060 (TiALN) 2.0X6.0 3 45 15 60
URCD 2560 2.5X6.0 3 50 15 60
URCD 2560 (TiALN) 2.5X6.0 3 50 15 60
URCD 3060 3.0X6.0 3.5 50 15 60
URCD 3060 (TiALN) 3.0X6.0 3.5 50 15 60
URCD 4080 4.0X8.0 4.5 58 15 60
URCD 4080 (TiALN) 4.0X8.0 4.5 58 15 60
URCD 4010 4.0X10.0 5 65 15 60
URCD 4010 (TiALN) 4.0X10.0 5 65 15 60
URCD 5010 5.0X10.0 6 65 15 60
UR. ToolsCutting tools manufacturer, Drill, End mill and more
UR Metaloy has dedicated itself to producing high quality and cost effective carbide cutting tools and its ceaseless efforts for research and development resulted in introducing hegh-tech facilities such as 5 axis tool grinder from Walter Germany, a number of 4 axis tool grinders and C.N.C profile machine. In order to provide better quality, better price and faster delivery to our customers, we never stop challenging at current status and give our best efforts 24 hours a day in improvement of quality and service. In addition to high quality, our wide range of Products list:Drill,Endmill,Carbide cutting tools etc.. from standard tools to unique and pecial designed tools can satisfy your normal and special requirements. Our commitment to your cost down and higher productivity is main reason to make quality goods.
