product Image

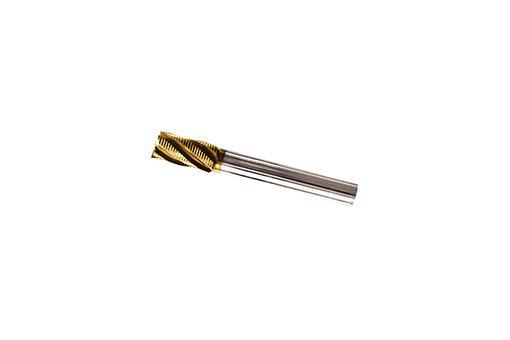

3F, 4F UR Roughing End Mill
Model Name
URRH3000
Data
-
Manufacturer information
provider logo
UR. Tools

Cutting tools manufacturer, Drill, End mill and more

Problem with product info?
Update request
Manufacturer
UR. Tools
Brand
-
SKU
61793
Product Name
3F, 4F UR Roughing End Mill
Model Name
URRH3000
Size
-
Weight
-
Product Details

(주)유림툴스 UR 3날, 4날 라핑 엔드밀 URRH3000

(주)유림툴스 UR 3날, 4날 라핑 엔드밀 URRH3000 1

-고경도강 및 SUS 계열, 인코넬, Ti, Ni, Cr, Mo 등 특수강, 합금강의 강력중절삭시 탁월한 성능을 발휘

-고경도강에서 탄소강까지 적용으로 다양한 피삭재 영역의 적용이 가능

-파인피치

-Surface-Treatment : Non-Coating도 가능함

-Powerful performance of rough cutting for cutting SUS, inconel, and various alloyed steel.

-Wide application for wide range of material from hardened steel to carbon steel.

-Fine pitch


모델번호
EDP NO.
인선직경(D)
Outside Diameter
날길이 (L1)
Flute Length
전장(L)
Overall length
생크직경 (D)
Shank Diameter
날수
No. of flute
나선
Helix
URRH 3060 6.0 9 60 6.0 3 20
URRH 3060-L 6.0 15 60 6.0 3 20
URRH 3070 7.0 11 70 8.0 3 20
URRH 3070-L 7.0 18 70 8.0 3 20
URRH 3080 8.0 12 65 8.0 3 20
URRH 3080-L 8.0 20 65 8.0 3 20
URRH 3090 9.0 14 70 10.0 4 20
URRH 3090-L 9.0 22 70 10.0 4 20
URRH 3100 10.0 15 70 10.0 4 20
URRH 3100-L 10.0 25 70 10.0 4 20
URRH 3110 11.0 17 80 12.0 4 20
URRH 3110-L 11.0 27 80 12.0 4 20
URRH 3120 12.0 18 80 12.0 4 20
URRH 3120-L 12.0 30 80 12.0 4 20
URRH 3130 13.0 35 100 14.0 4 20
UR. Tools
Cutting tools manufacturer, Drill, End mill and more
UR Metaloy has dedicated itself to producing high quality and cost effective carbide cutting tools and its ceaseless efforts for research and development resulted in introducing hegh-tech facilities such as 5 axis tool grinder from Walter Germany, a number of 4 axis tool grinders and C.N.C profile machine. In order to provide better quality, better price and faster delivery to our customers, we never stop challenging at current status and give our best efforts 24 hours a day in improvement of quality and service. In addition to high quality, our wide range of Products list:Drill,Endmill,Carbide cutting tools etc.. from standard tools to unique and pecial designed tools can satisfy your normal and special requirements. Our commitment to your cost down and higher productivity is main reason to make quality goods.
