-100% 순수 다이아몬드 코팅 적용
-흑연 가공에 추천
-비철 금속 가공에도 사용
-Surface-Treatment : Non-Coating도 가능함

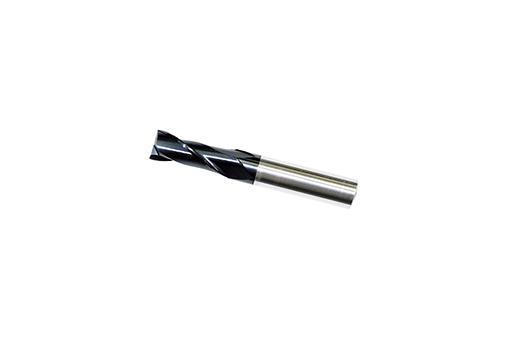

-100% pure diamond coating.
-The best End Mill for graphite milling.
-Suitable for nonferrous materials.
모델번호 EDP NO. |
인선직경(D) Outside Diameter |
날길이 (L1) Flute Length |
전장(L) Overall length |
생크직경 (D) Shank Diameter |
날수 No. of flute |
나선 Helix |
경도 Hardness |
---|---|---|---|---|---|---|---|
UREMD 2010 | 1.0 | 3 | 50 | 4.0 | 2 | 30 | 70 |
UREMD 2015 | 1.5 | 4 | 50 | 4.0 | 2 | 30 | 70 |
UREMD 2020 | 2.0 | 6 | 60 | 4.0 | 2 | 30 | 70 |
UREMD 2025 | 2.5 | 8 | 60 | 4.0 | 2 | 30 | 70 |
UREMD 2030 | 3.0 | 10 | 60 | 6.0 | 2 | 30 | 70 |
UREMD 2040 | 4.0 | 12 | 60 | 6.0 | 2 | 30 | 70 |
UREMD 2050 | 5.0 | 15 | 60 | 6.0 | 2 | 30 | 70 |
UREMD 2060 | 6.0 | 15 | 70 | 6.0 | 2 | 30 | 70 |
UREMD 2070 | 7.0 | 20 | 70 | 8.0 | 2 | 30 | 70 |
UREMD 2080 | 8.0 | 20 | 70 | 8.0 | 2 | 30 | 70 |
UREMD 2100 | 10.0 | 20 | 75 | 10.0 | 2 | 30 | 70 |
UREMD 2120 | 12.0 | 26 | 80 | 12.0 | 2 | 30 | 70 |
