product Image

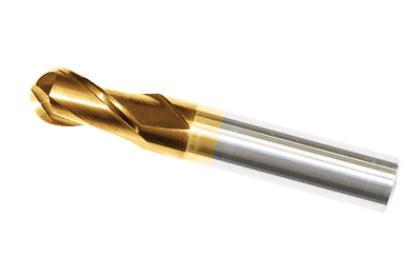

UR 4 Flutes Standard Ball End Mill
Model Name
URBM4000-SS
Data
-
Manufacturer information
provider logo
UR. Tools

Cutting tools manufacturer, Drill, End mill and more

Problem with product info?
Update request
Manufacturer
UR. Tools
Brand
-
SKU
79347
Product Name
UR 4 Flutes Standard Ball End Mill
Model Name
URBM4000-SS
Size
-
Weight
-
Product Details

(주)유림툴스 UR 4날 볼 엔드밀 URBM4000-SS

(주)유림툴스 UR 4날 볼 엔드밀 URBM4000-SS 1

-HRC 70 이하 고경도 소재의 금속 가공용으로 설계

-고정도 삼차원 가공에 적합

-최신 고품질 코팅 적용

-Surface-Treatment : Non-Coating도 가능함

-Designed for hardened material in high speed cutting.

-Suitable for three dimensional cutting in the high precision.

-A newly developed high quality coating is adopted.


모델번호
EDP NO.
볼반경(R)
Radius of Ball Nose
날길이 (L1)
Flute Length
전장(L)
Overall length
생크직경 (D)
Shank Diameter
날수
No. of flute
나선
Helix
경도
Hardness
URBM4050-SS R2.5 10 82 6 4 38 70
URBM4055-SS R2.75 10 82 6 4 38 70
URBM4060-SS R3.0 12 90 6 4 38 70
URBM4065-SS R3.25 14 102 8 4 38 70
URBM4070-SS R3.5 14 102 8 4 38 70
URBM4075-SS R3.75 14 102 8 4 38 70
URBM4080-SS R4.0 14 102 8 4 38 70
URBM4085-SS R4.25 18 102 10 4 38 70
URBM4090-SS R4.5 18 102 10 4 38 70
URBM4095-SS R4.75 18 102 10 4 38 70
URBM4100-SS R5.0 18 102 10 4 38 70
URBM4105-SS R5.25 22 102 12 4 38 70
URBM4110-SS R5.5 22 102 12 4 38 70
URBM4115-SS R5.75 22 102 12 4 38 70
URBM4120-SS R6.0 22 102 12 4 38 70
UR. Tools
Cutting tools manufacturer, Drill, End mill and more
UR Metaloy has dedicated itself to producing high quality and cost effective carbide cutting tools and its ceaseless efforts for research and development resulted in introducing hegh-tech facilities such as 5 axis tool grinder from Walter Germany, a number of 4 axis tool grinders and C.N.C profile machine. In order to provide better quality, better price and faster delivery to our customers, we never stop challenging at current status and give our best efforts 24 hours a day in improvement of quality and service. In addition to high quality, our wide range of Products list:Drill,Endmill,Carbide cutting tools etc.. from standard tools to unique and pecial designed tools can satisfy your normal and special requirements. Our commitment to your cost down and higher productivity is main reason to make quality goods.
Inquiry
