This product is manufactured by
WONCHANG VACUUM

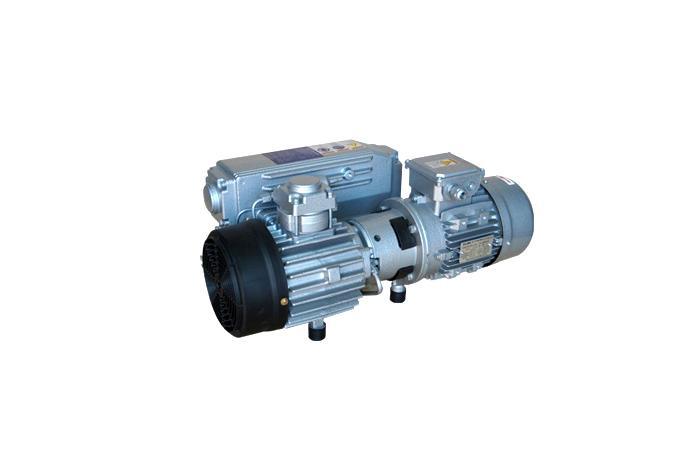

Oil Sealed Rotary Vane
Model Name
WOVP-0060
Data
카탈로그-원창진공-오일 로터리 베인-WOVP-0060, WOVP-0080
Manufacturer information
WONCHANG VACUUM
Vacuum Pumps Manufacturer, Oil Sealed Rotary Vane, Dry Carbon Vane, Hook and Claw and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WONCHANG VACUUM
Brand
-
SKU
136015
Product Name
Oil Sealed Rotary Vane
Model Name
WOVP-0060, WOVP-0080
Size
-
Weight
-
Product Details
Single Stage, Oil Re-circulating, Air Cooled, and direct driven
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple Installation - Air-cooled no water required.
ㆍDirect Drive - C-face design requires no belts
ㆍIntegral Exhaust filter - Discharge Air 99.9% Oil-Free Quiet operation
Standard Equipment : Composite Vane, wire mesh inlet filter screen, Vibration isolator, TEFC high-efficiency Motor, Anti-suck back valve, Oil level sight Glass, Gas Ballast Valve (N&F Only), Spin-on Oil Filter
Optional Equipment : Exhaust pressure Gause, Level Switch, and Heater
Specifications
| Models | 60 | 80 | ||
| Displace-ment | 60Hz | m3/h | 36 | 48 |
| 50Hz | 30 | 40 | ||
| End-Vacuum | F or N Type | mbar | 0.5 | |
| NM Type | NA | |||
| L Type | NA | |||
| Motor (3Ph) | IEC (Kw) | 60Hz | 1.1 | 1.5 |
| 50Hz | 0.9 | 1.1 | ||
| NEMA (Hp) | 60Hz | 2 | ||
| Motor (1Ph) | IEC (Kw) | 50/60Hz | 1.5 | |
| Revolution | RPM | 60Hz | 1740 | |
| 50Hz | 1450 | |||
| Connections | G(BSP) or NPT | Inlet | 1-1/4" | |
| Outlet | 1-1/4" | |||
Performance Curve
