This product is manufactured by
WONCHANG VACUUM
TOP
Model Name
WVS-3
Data
카탈로그-원창진공-건식 카본 로터리 베인-WVS-3, WVS-3H, WVS-5, WVS-5H, WVS-6, WVS-6H
Manufacturer information
WONCHANG VACUUMVacuum Pumps Manufacturer, Oil Sealed Rotary Vane, Dry Carbon Vane, Hook and Claw and more
Problem with product info?
Update request
Manufacturer
WONCHANG VACUUM
Brand
-
SKU
136034
Product Name

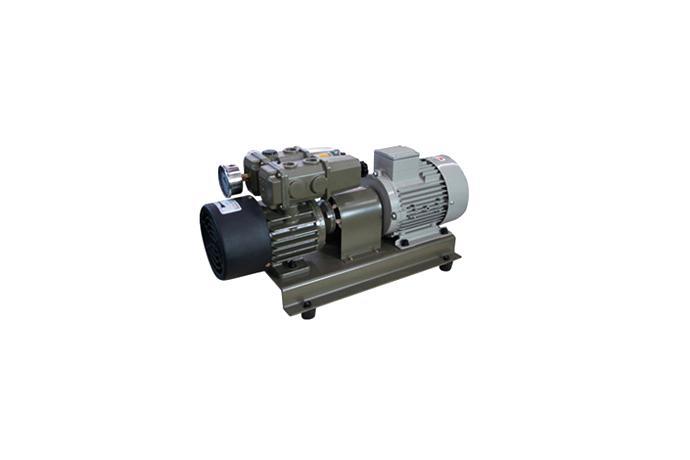

Dry Carbon Vane
Model Name
WVS-3, WVS-3H, WVS-5, WVS-5H, WVS-6, WVS-6H
Size
-
Weight
-
Product Details
Single Stage, Carbon Vane Rotary, Air-cooled
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple installation - Air-cooled, No Water Required - Oil-Free
ㆍQuite Operation
ㆍDirect Coupling Drive
Standard Equipment : Carbon Vanes, Built-in particulate filter & Silencer, Vibration isolators, Vacuum gage and Regulator, TEFC high Efficiency Motor
Optional Equipment : Pressure Gauge & regulator for Blow operation
Specifications
| Models | WVH | ||||
| 3 / 3H | 5 / 5H | 6 / 6H | |||
| Displace-ment | 60Hz | I/min | 280 | 480 | 685 |
| 50Hz | I/min | 235 | 405 | 575 | |
| End-Vacuum | mm HgG | 610 | 650 | ||
| Normal Operating Vacuum | mm HgG | 450 / 600 | |||
| Normal Operating Pressure | Kgf/cm2 | 0.6 | |||
| Motor | Kw | 0.4 | 0.75 | 1.5 | |
|
Pump RPM |
60Hz | rpm | 1740 | ||
| 50Hz | rpm | 1450 | |||
| Connections | Intake (G-Bsp) | 3/4" | |||
| Driven | Coupling | ||||
Performance Curve
