ㆍMost Powerful
ㆍDUTY 30 Min.
■ PERFORMANCE DATA (DUTY : 30 min.)
| Motor Type | Output (W) |
Voltage (V) |
Freq. (Hz) |
Rating | Starting | Condenser | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Input (W) |
Current (A) |
Torque (kgf·cm) |
Speed (rpm) |
Torque (kgf·cm) |
(V) | (㎌) | ||||
| RH6PF6-10 | 6 | 1ø100 | 50 | 20 | 0.30 | 0.47 | 1250 | 0.45 | 250 | 3.0 |
| 60 | 20 | 0.30 | 0.38 | 1550 | 0.45 | |||||
| RH6PF6-11 | 1ø110 | 60 | 25 | 0.30 | 0.38 | 1550 | 0.55 | 250 | 3.0 | |
| RH6PF6-20 | 6 | 1ø200 | 50 | 20 | 0.15 | 0.47 | 1250 | 0.45 | 450 | 0.8 |
| 60 | 20 | 0.15 | 0.38 | 1550 | 0.45 | |||||
| RH6PF6-22 | 1ø220 | 60 | 25 | 0.15 | 0.38 | 1550 | 0.55 | 450 | 0.8 | |
| RH6PF6-1U | 6 | 1ø115 | 60 | 25 | 0.23 | 0.39 | 1550 | 0.60 | 250 | 2.5 |
| RH6PF6-2C | 6 | 1ø220 | 50 | 30 | 0.14 | 0.49 | 1200 | 0.60 | 450 | 0.8 |
| 7 | 1ø240 | 50 | 35 | 0.14 | 0.57 | 1200 | 0.70 | |||
- For motor with straight shaft, please write S in place of PF in Motor Type.
- Motor Type in green screen represents the motors with TP(Thermal Protect) according to UL or CE regulation
- Reversing direction without stopping completely may result in damage to the motor and reduce the life of the motor due to excessive inertia.
- The starting torque is higher than that of the INDUCTION MOTOR.
■ RATED TORQUE OF GEARED MOTOR
| Speed of Geared Motor | rpm | 500 | 300 | 200 | 120 | 100 | 60 | 50 | 30 | 20 | 15 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 50Hz | 3 | 5 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 100 | 150 |
| 60Hz | 3.6 | 6 | 9 | 15 | 18 | 30 | 36 | 60 | 90 | 120 | 180 | |
| RH6PF6 + 6H□FM | 1.1 | 1.9 | 2.8 | 4.7 | 5.7 | 8.5 | 10.2 | 15 | 23 | 25 | 25 | |
| RH6PF6 + 6H□FB | 1.1 | 1.8 | 2.7 | 4.6 | 5.5 | 8.2 | 9.9 | 15 | 22 | 25 | 25 | |
| (unit : kg·cm) | ||||||||||||
- The rotation of geared motor in green screen is reverse of motor rotation.
- Speed of Geared Motor is based on motor synchronous speed. In normal operation, the speed will be 2 to 15 percent lower than above figure.
- When ordering gear head, please fill blank □ with gear ratio
■ MOTOR(STRAIGHT SHAFT) RH6S6 WT 1.0kg

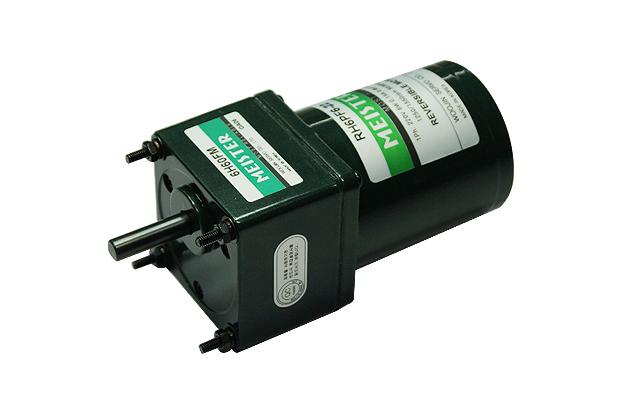

■ GEARED MOTOR RH6PF6 + 6H□ FM(6H□ FB) WT 1.0+0.3/0.4kg
■ BOLT SIZE
| No | L(mm) | GEAR RATIO | BOLT SIZE |
|---|---|---|---|
| 01 | 30 | 1/3 ~ 1/18 | M4×60 |
| 02 | 40 | 1/20 ~ 1/200 | M4×70 |
■ WIRING DIAGRAM
- The direction of rotation is seen from the end of motor shaft.
- Change the rotation direction of the motor only after the motor stops completely.
