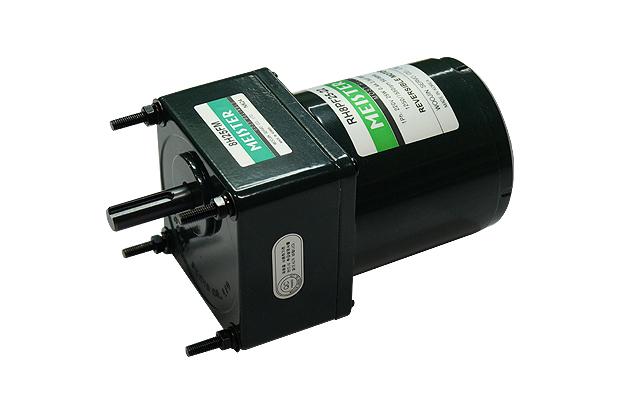

Reversible Motor (80mm 25W)
Model Name
RH8PF25-10
Data
-
Manufacturer information
provider logo
WOOJIN SERVO

Small precision motor manufacturer, Induction motor, Speed control, Geared motor

Problem with product info?
Update request
Manufacturer
WOOJIN SERVO
Brand
-
SKU
136554
Product Name
Reversible Motor (80mm 25W)
Model Name
RH8PF25-10, RH8PF25-11, RH8PF25-20, RH8PF25-22, RH8PF25-1, URH8PF25-2C
Size
-
Weight
-
Product Details

ㆍMost Powerful

ㆍDUTY    30 Min.



■ PERFORMANCE DATA (DUTY : 30 Min.)

Motor Type Output
(W)
Voltage
(V)
Freq.
(Hz)
Rating Starting Condenser
Input
(W)
Current
(A)
Torque
(kgf·cm)
Speed
(rpm)
Torque
(kgf·cm)
(V) (㎌)
RH8PF25-10 25 1ø100 50 80 0.90 1.95 1250 1.60 250 10.0
60 75 0.90 1.57 1550 1.60
RH8PF25-11 1ø110 60 90 0.90 1.57 1550 2.00 250 10.0
RH8PF25-20 25 1ø200 50 75 0.40 1.95 1250 1.60 450 2.5
60 75 0.40 1.57 1550 1.60
RH8PF25-22 1ø220 60 85 0.40 1.57 1550 2.00 450 2.5
RH8PF25-1U 25 1ø115 60 85 0.90 1.57 1550 1.90 250 7.5
RH8PF25-2C 22 1ø220 50 65 0.29 1.71 1250 1.80 450 2.0
25 1ø240 50 75 0.29 1.95 1250 2.30

- For motor with straight shaft, please write S in place of PF in Motor Type.

- Motor Type in green screen represents the motors with TP(Thermal Protect) according to UL or CE regulation.

- Reversing direction without stopping completely may result in damage to the motor and reduce the life of the motor due to excessive inertia.

- The starting torque is higher than that of the INDUCTION MOTOR.





■ RATED TORQUE OF GEARED MOTOR

Speed of Geared Motor rpm 500 300 200 120 100 60 50 30 20 15 10
Gear Ratio 50Hz 3 5 7.5 12.5 15 25 30 50 75 100 150
60Hz 3.6 6 9 15 18 30 36 60 90 120 180
RH8PF25 + 8H□FM 4.7 7.9 12 20 24 35 43 64 96 100 100
RH8PF25 + 8H□FB 4.6 7.6 11 19 23 34 41 62 93 100 100
(unit : kg·cm)

- The rotation of geared motor in green screen is reverse of motor rotation.

- Speed of Geared Motor is based on motor synchronous speed. In normal operation, the speed will be 2 to 15 percent lower than above figure.

- When ordering gear head, please fill blank □ with gear ratio



■ MOTOR(STRAIGHT SHAFT)  RH8S25  WT 1.6kg





■ GEARED MOTOR  RH8PF25 + 8H□ FM(8H□ FB)  WT 1.5+0.5/0.6kg





■ BOLT SIZE

No L(mm) GEAR RATIO BOLT SIZE
01 32 1/3 ~ 1/20 M5×60
02 42 1/25 ~ 1/200 M5×70





■ KEY SPEC





■ WIRING DIAGRAM

- The direction of rotation is seen from the end of motor shaft.

- Change the rotation direction of the motor only after the motor stops completely.
