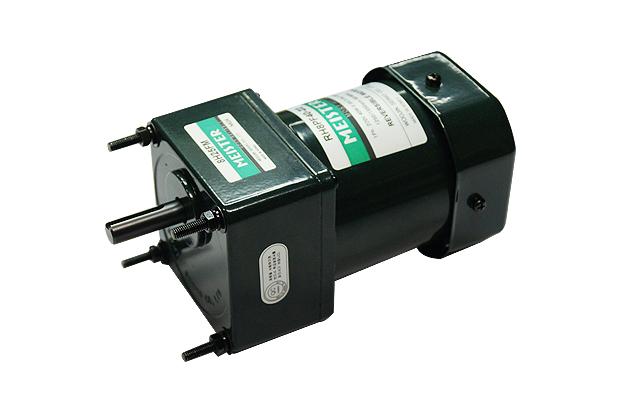

product Image
Reversible Motor (80mm 40W)
Model Name
RH8PF40-10
Data
-
Manufacturer information
provider logo
WOOJIN SERVO

Small precision motor manufacturer, Induction motor, Speed control, Geared motor

Problem with product info?
Update request
Manufacturer
WOOJIN SERVO
Brand
-
SKU
136556
Product Name
Reversible Motor (80mm 40W)
Model Name
RH8PF40-10, RH8PF40-11, RH8PF40-20, RH8PF40-22, RH8PF40-1U, RH8PF40-2C
Size
-
Weight
-
Product Details

ㆍMost Powerful

ㆍDUTY    30 Min.



■ PERFORMANCE DATA (DUTY : 30 Min.)

Motor Type Output
(W)
Voltage
(V)
Freq.
(Hz)
Rating Starting Condenser
Input
(W)
Current
(A)
Torque
(kgf·cm)
Speed
(rpm)
Torque
(kgf·cm)
(V) (㎌)
RH8PF40-10 40 1ø100 50 95 1.20 3.12 1250 2.80 250 16.0
60 105 1.20 2.51 1550 2.80
RH8PF40-11 1ø110 60 125 1.20 2.51 1550 3.50 250 16.0
RH8PF40-20 40 1ø200 50 90 0.50 3.12 1250 2.30 450 3.0
60 90 0.50 2.51 1550 2.30
RH8PF40-22 1ø220 60 100 0.50 2.51 1550 2.80 450 3.0
RH8PF40-1U 40 1ø115 60 110 1.20 2.51 1550 2.80 250 12.0
RH8PF40-2C 33 1ø220 50 85 0.42 2.68 1200 3.00 450 3.0
38 1ø240 50 100 0.42 3.08 1200 3.50

- For motor with straight shaft, please write S in place of PF in Motor Type.

- Motor Type in green screen represents the motors with TP(Thermal Protect) according to UL or CE regulation.

- Reversing direction without stopping completely may result in damage to the motor and reduce the life of the motor due to excessive inertia.

- The starting torque is higher than that of the INDUCTION MOTOR.





■ RATED TORQUE OF GEARED MOTOR

Speed of Geared Motor rpm 500 300 200 120 100 60 50 30 20 15 10
Gear Ratio 50Hz 3 5 7.5 12.5 15 25 30 50 75 100 150
60Hz 3.6 6 9 15 18 30 36 60 90 120 180
RH8PF40 + 8H□FM 7.6 13 19 32 38 57 68 100 100 100 100
RH8PF40 + 8H□FB 7.3 12 18 31 37 55 66 100 100 100 100
(unit : kg·cm)

- The rotation of geared motor in green screen is reverse of motor rotation.

- Speed of Geared Motor is based on motor synchronous speed. In normal operation, the speed will be 2 to 15 percent lower than above figure.

- When ordering gear head, please fill blank □ with gear ratio



■ MOTOR(STRAIGHT SHAFT)  RH8S40  WT 1.7kg





■ GEARED MOTOR  RH8PF40 + 8H□ FM(8H□ FB)  WT 1.7+0.5/0.6kg





■ BOLT SIZE

No L(mm) GEAR RATIO BOLT SIZE
01 32 1/3 ~ 1/20 M5×60
02 42 1/25 ~ 1/200 M5×70





■ KEY SPEC





■ WIRING DIAGRAM



- The direction of rotation is seen from the end of motor shaft.

- Change the rotation direction of the motor only after the motor stops completely.
