ㆍMost Powerful
ㆍDUTY 30 Min.
■ PERFORMANCE DATA (DUTY : 30 Min.)
| Motor Type | Output (W) |
Voltage (V) |
Freq. (Hz) |
Rating | Starting | Condenser | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Input (W) |
Current (A) |
Torque (kgf·cm) |
Speed (rpm) |
Torque (kgf·cm) |
(V) | (㎌) | ||||
| RH9PF40-10 | 40 | 1ø100 | 50 | 105 | 1.00 | 3.12 | 1250 | 3.00 | 250 | 15.0 |
| 60 | 105 | 1.00 | 2.51 | 1550 | 3.20 | |||||
| RH9PF40-11 | 1ø110 | 60 | 120 | 1.00 | 2.51 | 1550 | 3.50 | 250 | 15.0 | |
| RH9PF40-20 | 40 | 1ø200 | 50 | 105 | 0.50 | 3.12 | 1250 | 3.50 | 450 | 3.5 |
| 60 | 105 | 0.50 | 2.51 | 1550 | 3.50 | |||||
| RH9PF40-22 | 1ø220 | 60 | 120 | 0.50 | 2.51 | 1550 | 4.00 | 450 | 3.5 | |
| RH9PF40-1U | 40 | 1ø115 | 60 | 120 | 1.00 | 2.51 | 1550 | 2.80 | 250 | 12.0 |
| RH9PF40-2C | 40 | 1ø220 | 50 | 100 | 0.48 | 3.12 | 1250 | 3.00 | 450 | 3.0 |
| 45 | 1ø240 | 50 | 120 | 0.48 | 3.51 | 1200 | 4.00 | |||
- For motor with straight shaft, please write S in place of PF in Motor Type.
- Motor Type in green screen represents the motors with TP(Thermal Protect) according to UL or CE regulation.
- Reversing direction without stopping completely may result in damage to the motor and reduce the life of the motor due to excessive inertia.
- The starting torque is higher than that of the INDUCTION MOTOR.
■ RATED TORQUE OF GEARED MOTOR
| Speed of Geared Motor | rpm | 500 | 300 | 200 | 120 | 100 | 60 | 50 | 30 | 20 | 15 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 50Hz | 3 | 5 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 100 | 150 |
| 60Hz | 3.6 | 6 | 9 | 15 | 18 | 30 | 36 | 60 | 90 | 120 | 180 | |
| RH9PF40 + 9H□FM | 7.6 | 13 | 19 | 32 | 38 | 57 | 68 | 100 | 100 | 100 | 100 | |
| RH9PF40 + 9H□FB | 7.3 | 12 | 18 | 31 | 37 | 55 | 66 | 100 | 100 | 100 | 100 | |
| (unit : kg·cm) | ||||||||||||
- The rotation of geared motor in green screen is reverse of motor rotation.
- Speed of Geared Motor is based on motor synchronous speed. In normal operation, the speed will be 2 to 15 percent lower than above figure.
- When ordering gear head, please fill blank □ with gear ratio
■ MOTOR(STRAIGHT SHAFT) RH9S40 WT .5kg

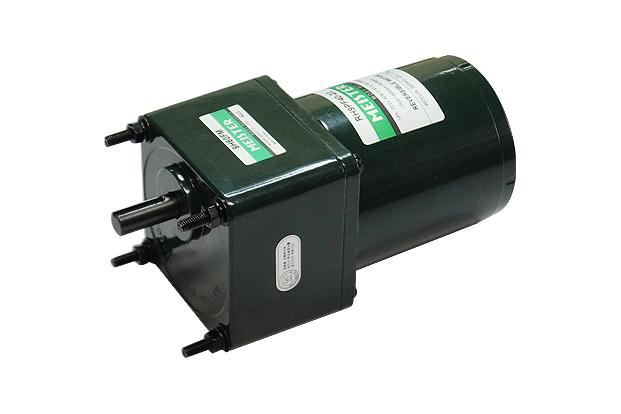

■ GEARED MOTOR RH9PF40 + 9H□ FM(9H□ FB) WT 2.5+0.8/0.9kg
■ BOLT SIZE
| No | L(mm) | GEAR RATIO | BOLT SIZE |
|---|---|---|---|
| 01 | 42 | 1/3 ~ 1/20 | M6×70 |
| 02 | 60 | 1/25 ~ 1/200 | M6×90 |
■ KEY SPEC
■ WIRING DIAGRAM
- The direction of rotation is seen from the end of motor shaft.
- Change the rotation direction of the motor only after the motor stops completely.
