Rotary Positioning&Indexing Drives
Model Name
BVR Series
Data
-
Manufacturer information
provider logo
YANGHEON MACHINERY

Index drive manufacturer, CAM, Mold and more

Problem with product info?
Update request
Manufacturer
YANGHEON MACHINERY
Brand
-
SKU
688
Product Name
Rotary Positioning&Indexing Drives
Model Name
BVR Series
Size
-
Weight
-
Product Details

Description

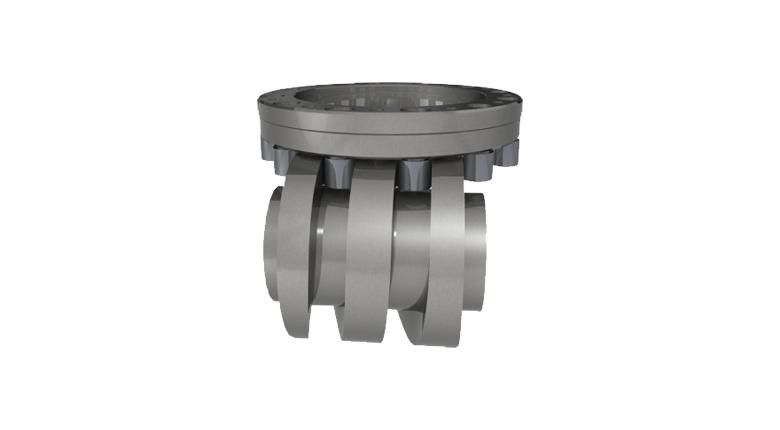

This intermittent rotating type of Index Drive has Input shaft with worm wheel, large barrel CAM and large splitter plate. Its taper type of CAM follower bearing is running with the CAM preloaded, which allows extended lifespan and excellent precision. Both Input and Output shaft also assembled with Taper roller bearings are excellent in rigidity as well.


Remarks

1. SIZE
BVR Model provides variety of sizes with 200, 350, 500, 700, 1000
(axial distance shaft-to-shaft: 100, 175, 250, 350, 500 mm)

2. Output and Stops (based on 50 RPM input shaft)
Wide range of stops available between 6~24

3. Function
Composed with 3 output shafts for one input shaft(worm wheel), various equipment mounting is available.
It makes no noise from vibration and high accurate split.
The body with oil box does not require to change oil for a long time.
Having a robust body, it’s proper to handle with heavy duty.
Also having built-in worm reducer, it’s no need for any reducer.

4. Applications
BVR SERIES is broadly applicable to automated machine, welding machine, packing machine, manufacturing machine for electric products.
Quick and accurate control is available, and complicated various split is also available.


Product(Size) List

200  350  500  700  1000

YANGHEON MACHINERY
Index drive manufacturer, CAM, Mold and more
Our company YANGHEON has reached the 24th year of its existence and mainly has designed and manufactured for INDEX DRIVE SYSTEM, CAM, CAPSULE MOLD and etc. in automatic engineering field. Our mission is to design, manufacture, supply and develope automatic machines in Food, Pharmacy, TFT-LCD and Electric industries. Our major sales items include Roller Gear Index, Parallel Index, Ring Type Index, Universal (Oscillating) Type Index, Barrel Index, P&P Unit, ATC (Automatic Tool Changer) Unit and custom Cam. Our major goal is trying to do our best to product our best quality and receiving mutual credit with customers.
