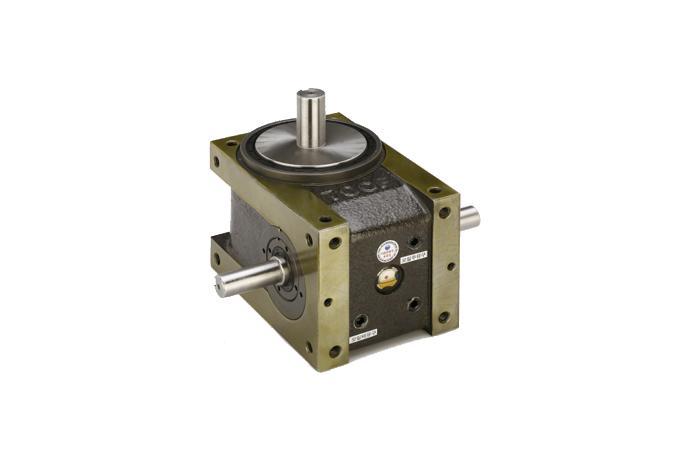

Rotary Positioning&Indexing Drives
Model Name
CS Series
Data
-
Manufacturer information
provider logo
YANGHEON MACHINERY

Index drive manufacturer, CAM, Mold and more

Problem with product info?
Update request
Manufacturer
YANGHEON MACHINERY
Brand
-
SKU
696
Product Name
Rotary Positioning&Indexing Drives
Model Name
CS Series
Size
-
Weight
-
Product Details

Description

In 1991, we first developed Cam index roller gear drive intermittent indexer.

And then, have improved and innovated both hard and soft wares with upgrading motion and input properties by the interpretation of Cam curve, developing and adopting of Cam.

CS series has been serving as a driving source for Conveyer drive and rotary type of automatic machine, having wide range of sales performance as a basic drive among Handex intermittent indexer series. Its output shaft is easily equipped with torque limiter to protect it from overload.

This series guarantees safety, reliability and high velocity.


Remarks

1. Wide range of sizes
Standardized the size for the axial distance (shaft-to-shaft) of 45~450mm to be broadly used from small sized electrical parts to large assembled products, and machining center for transferring and heavy cutting.

2. High Efficiency / High capacity / High Accuracy

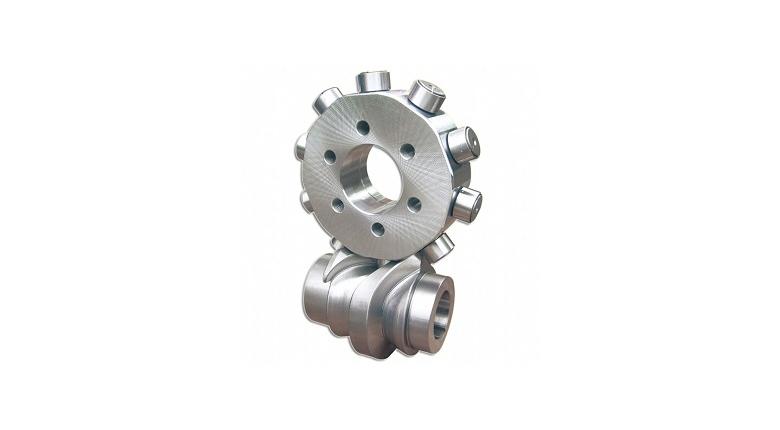

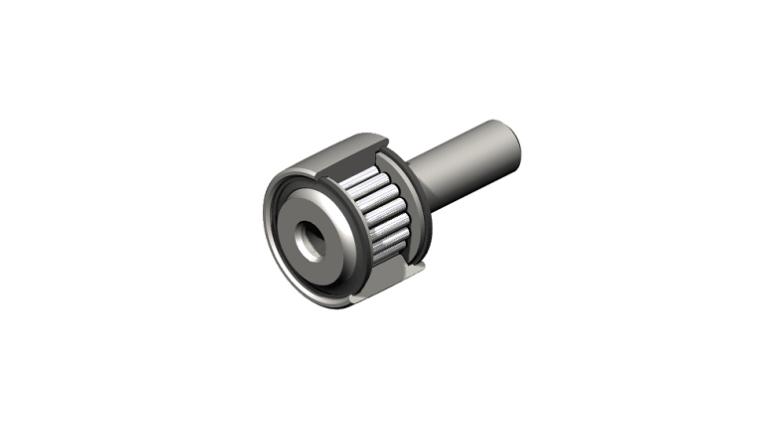

Heat-treated and precisly grinding machined CAM and Cam-follower bearing enable operation with high efficiency, high capacity and high accuracy without backlash and vibration when high speed driving.

3. Universal Mounting
All 6 sides available for mounting provide flexibility in designing.

4. High speed Rotating
Precisely processed Cam, Cam-follower bearing, splitter plate make no vibration and noise during high speed rotation made within oil box, which makes no heat from friction.

5. Wide range of options
Various options such as Torque limiter, Reducer, Clutch, Brake are mountable.


Product(Size) List

teste  045  050  060  070  080  110  140  160  180

YANGHEON MACHINERY
Index drive manufacturer, CAM, Mold and more
Our company YANGHEON has reached the 24th year of its existence and mainly has designed and manufactured for INDEX DRIVE SYSTEM, CAM, CAPSULE MOLD and etc. in automatic engineering field. Our mission is to design, manufacture, supply and develope automatic machines in Food, Pharmacy, TFT-LCD and Electric industries. Our major sales items include Roller Gear Index, Parallel Index, Ring Type Index, Universal (Oscillating) Type Index, Barrel Index, P&P Unit, ATC (Automatic Tool Changer) Unit and custom Cam. Our major goal is trying to do our best to product our best quality and receiving mutual credit with customers.
