Rotary Positioning&Indexing Drives
Model Name
CU Series
Data
-
Manufacturer information
provider logo
YANGHEON MACHINERY

Index drive manufacturer, CAM, Mold and more

Problem with product info?
Update request
Manufacturer
YANGHEON MACHINERY
Brand
-
SKU
700
Product Name
Rotary Positioning&Indexing Drives
Model Name
CU Series
Size
-
Weight
-
Product Details

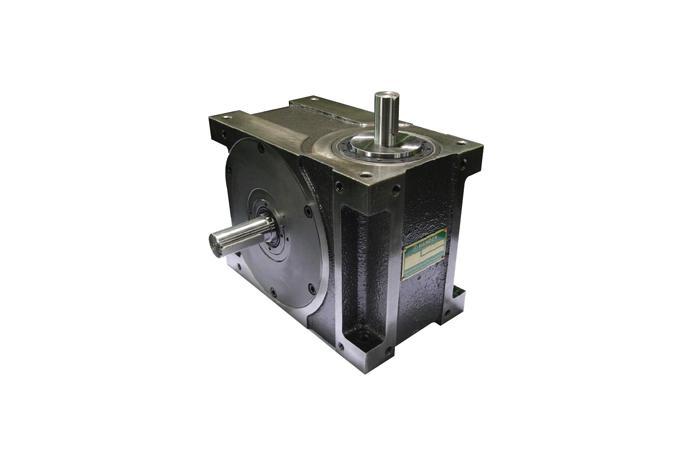

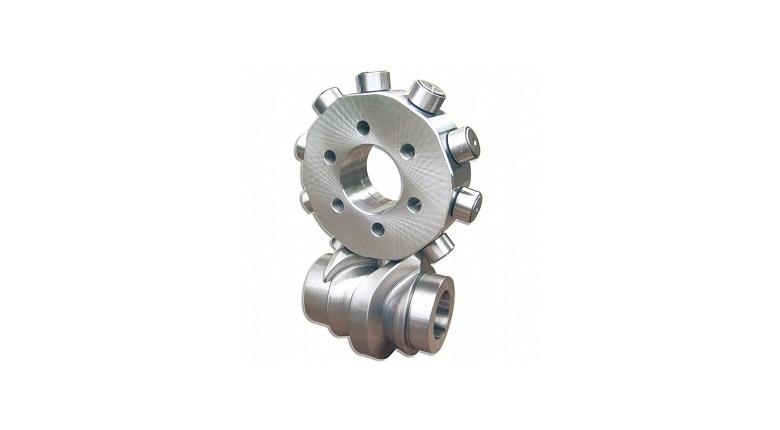

Description

CU series has larger Cam than standard type of roller gear Index Drive such as CF/CS, which solves the problems such as undercut, limited pressure angle the existing standard type of Cam has involved.

CU series has 120° of minimum dividing angle for bisection while common Roller gear Index has 270° of that.

The standard type has needed external equipment such as clutches, brakes, servo-motors or costly power transmission system, but CU series allows wider dwell angle enabling simple and effective control of dwell time.


Remarks

1. Small indexing(dividing) Angle
Smaller dividing angle gives longer dwell time within the cycle time.

2. Standardized Sizes
Standardized 4 axial distance (shaft-to-shaft)s from 80 to 200mm

3. Flexible mounting
Basically the all 6 sides are available for mounting with taps on the front side.

4. OPTION
Torque Limiter, Reducer, Clutch, Brake Motor, etc. can be mounted.


Product(Size) List

080  110  140  200
