Rotary Positioning&Indexing Drives
Model Name
EF Series
Data
-
Manufacturer information
provider logo
YANGHEON MACHINERY

Index drive manufacturer, CAM, Mold and more

Problem with product info?
Update request
Manufacturer
YANGHEON MACHINERY
Brand
-
SKU
702
Product Name
Rotary Positioning&Indexing Drives
Model Name
EF Series
Size
-
Weight
-
Product Details

Description

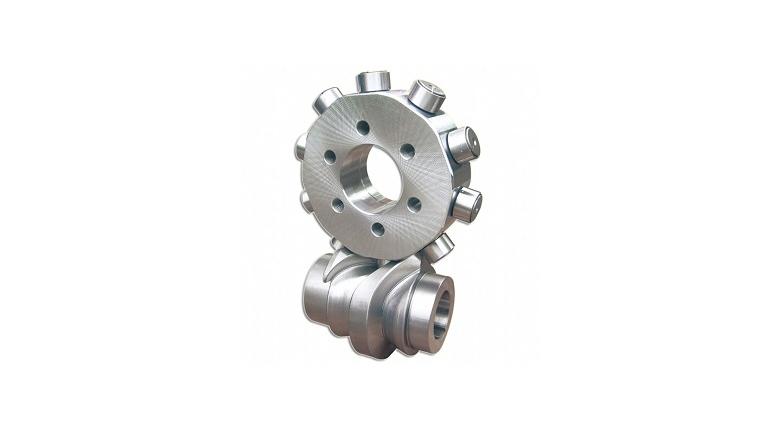

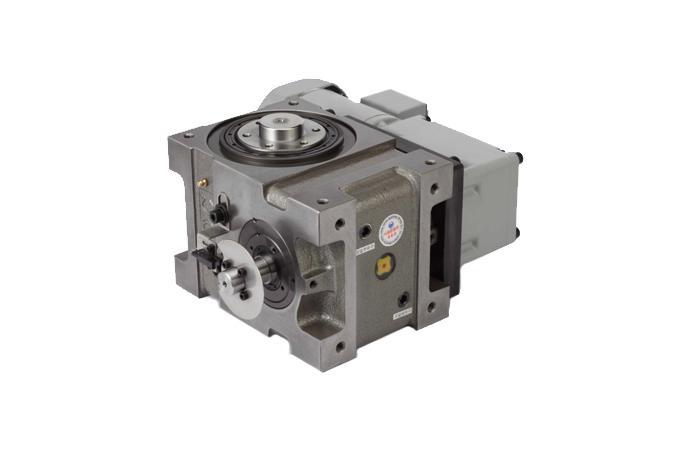

EF series is Index Drive that the Input shaft continuously rotates in constant pace while the output shaft works in reciprocating motion on the basis of given angle. Adopted with roller gear Cam, it’s characterized by the output part’s reciprocating motion to the input part’s rotation in single direction. It also has high accuracy and rigidity and doesn’t need to control to turn the rotating directions.


Remarks

1. Maximum 180° of oscillating angle

2. Product’s size is same as CF series.

3. Straight reciprocating motion enabled by the lever adopted.


Product(Size) List

045  060  070  080  110  140  180  250  300

YANGHEON MACHINERY
Index drive manufacturer, CAM, Mold and more
Our company YANGHEON has reached the 24th year of its existence and mainly has designed and manufactured for INDEX DRIVE SYSTEM, CAM, CAPSULE MOLD and etc. in automatic engineering field. Our mission is to design, manufacture, supply and develope automatic machines in Food, Pharmacy, TFT-LCD and Electric industries. Our major sales items include Roller Gear Index, Parallel Index, Ring Type Index, Universal (Oscillating) Type Index, Barrel Index, P&P Unit, ATC (Automatic Tool Changer) Unit and custom Cam. Our major goal is trying to do our best to product our best quality and receiving mutual credit with customers.
