This product is manufactured by
YONWOO PNEUMATIC
Mechanical valve (RVL, PMEV 5PORT Series)
Model Name
RLV 5PORT Series
Data
Catalog-Yonwoo Pneumatic-Mechanical valve-RVL Series
Manufacturer information
YONWOO PNEUMATIC
Solenoid, Mechanical, Cartridge valve and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
YONWOO PNEUMATIC
Brand
-
SKU
129481
Product Name
Mechanical valve (RVL, PMEV 5PORT Series)
Model Name
RLV 5PORT Series, PMEV 5PORT Series
Size
-
Weight
-
Product Details

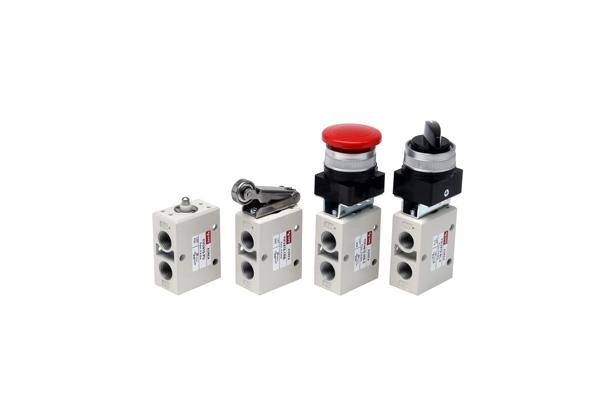

Mechanical valve
YMV, RVL, PMEV
Increased performance and durability
Pilot type valve
Long life
Actuator diversification
Oil-free type
RLV 5PORT Series 5/2Way, Mechanical valve
| Model Name | Function | Eff. Sectional Area | Port Size | Pressure |
|---|---|---|---|---|
| RLV110-PU | Pushrod | 3.5㎟ | M5 | 0.8Mpa |
| RLV110-1RB | Two-way Plastic Roller Lever | 3.5㎟ | M5 | 0.8Mpa |
| RLV110-1RP | Two-way Bearing Roller Lever | 3.5㎟ | M5 | 0.8Mpa |
| RLV210-PU | Pushrod | 12.6㎟ | 1/8 | 0.8Mpa |
| RLV210-1RB | Two-way Plastic Roller Lever | 12.6㎟ | 1/8 | 0.8Mpa |
| RLV210-1RP | Two-way Bearing Roller Lever | 12.6㎟ | 1/8 | 0.8Mpa |
| RLV410-PU | Pushrod | 19.0㎟ | 1/4 | 0.8Mpa |
| RLV410-1RB | Two-way Plastic Roller Lever | 19.0㎟ | 1/4 | 0.8Mpa |
| RLV410-1RP | Two-way Bearing Roller Lever | 19.0㎟ | 1/4 | 0.8Mpa |
RLV 5PORT Series Order Form
PMEV 5PORT Series 5/2Way, Mechanical valve
| Model Name | Function | Eff. Sectional Area | Port Size | Pressure |
|---|---|---|---|---|
| PMEV110-FP-2 | Pushrod | 3.5㎟ | M5 | 0.8Mpa |
| PMEV110-MS-2 | Mushroom Push Button | 3.5㎟ | M5 | 0.8Mpa |
| PMEV110-SL-2 | 2-Position Selector | 3.5㎟ | M5 | 0.8Mpa |
| PMEV210-FP-3 | Pushrod | 12.6㎟ | 1/8 | 0.8Mpa |
| PMEV210-MS-3 | Mushroom Push Button | 12.6㎟ | 1/8 | 0.8Mpa |
| PMEV210-SL-3 | 2-Position Selector | 12.6㎟ | 1/8 | 0.8Mpa |
| PMEV410-FP-3 | Pushrod | 19.0㎟ | 1/4 | 0.8Mpa |
| PMEV410-MS-3 | Mushroom Push Button | 19.0㎟ | 1/4 | 0.8Mpa |
| PMEV410-SL-3 | 2-Position Selector | 19.0㎟ | 1/4 | 0.8Mpa |
PMEV 5PORT Serie Order Form
