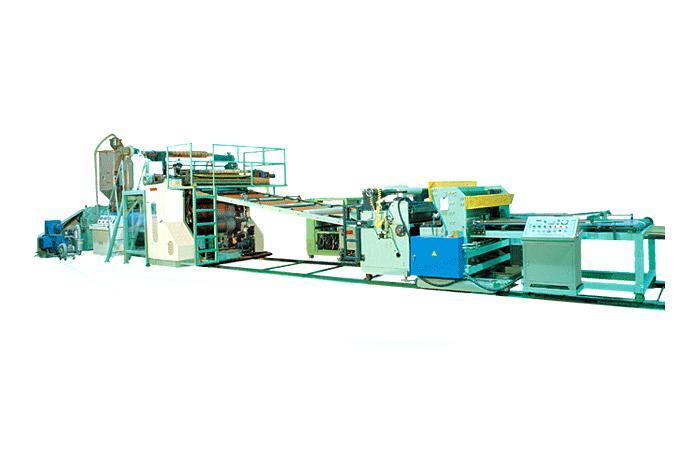

Product detailed view
Specification
Item | YS-120Φ x 1800 L | |
Extruder | Screw diameter | Φ 120 mm |
L/D | 30 : 1 | |
Revolution | 20 ~ 60 R.P.M | |
Material | SCM 4 | |
Cylinder material | SACM 645 | |
Heating | 6 zones | |
Extruding out putq | 300 kg/hr | |
Driving motor | 120 HP DC motor | |
Screen changer |
Type | Oil hydraulic |
Oil pump | 5 HP | |
Accumulator | 15 L | |
T-die | Width | 1,800 mm |
Type | manifold | |
Material | SCM 4 | |
Heating zone | 7 zones | |
Polishing roll unit |
Type | Vertical 3 rolls |
Roll | Φ350 x 2000 mm | |
Roll adjust | by air cylinder | |
Drive motor | 5 HP DC motor | |
Guide roll | Guide length | 1,800 mm |
Roll | Φ90 x 180 mm | |
Take up unit | Roll | rubber Φ200 x 1800 mm |
Number of roll | 2 EA | |
Up, down method | by air cylinder | |
Drive motor | 3 HP DC motor | |
Cutting unit | Cutting motor | 1 HP geared motor |
Knife | Plate knife | |
Sheet clamping | by air cylinder | |
Winder | Number of shaft | Air shaft x 2 EA |
Drive | 3 HP VS motor & clutch | |
Winding diameter | Max Φ600 mm | |
Heat & cooling unit |
Tank volume | 120 L |
Heater capacity | 10 kw x 3 = 30 kw | |
Pump | Water pump x 2 HP | |
Heating | 2 zones |
Product feature
YOUSUNG's extrusion line form high value added superior quality plastic sheet s with great efficiency.
It manufacture of sheets for plastics molding case.
