Main applications of Geo-membrane
Man-Made Reservoirs : Pond, Dike, Channel, Fish farm, Swiming pool
Tunnels : Road, Subway, Cable duct, Open-cut
Construction : Rooftop, Roofgarden
Fields : Ware house, Gallery, Undergriund tank
Sewage : Waste disposal dump
Treatment : Sewage purification plant, Sanitary landfill disposal pits Brine storage lagoons
Chemical : Waste & acid & alkaline pounds
Industry : Surge ponds, Material salvage basins rragation
Agriculture : Drainage canals & ditches, Rain trapsm Stockwater ponds

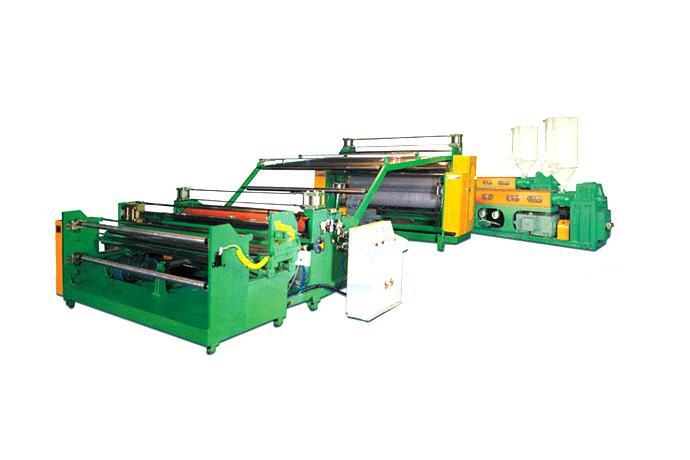

Product detailed view
Specification
Item | YS-120Φ x 2400L | YS-150Φ x 7000L | |
Extruder | Screw | Φ120 x LD = 30 | Φ150 x LD = 30 |
Revolution | 20 ~ 60 R.P.M | 20 ~ 60 R.P.M | |
Material | SCM 4 | SCM 4 | |
Cylinder | SACM 645 | SACM 645 | |
Extruding out put | max.. 300 kg/hr | max.. 500 kg/hr | |
Driving motor | 90 kw DC | 225 kw DC | |
Screen changer |
Type | Oil hydraulic | Oil hydraulic |
Operation | Semi-auto type | Semi-auto type | |
T-die | Type | Manifold | Manifold |
Width | 2400 mm | 7300 mm | |
Material | SCM 4 | SCM 4 | |
Polishing roll unit |
Roll | Φ350 x 2400L x 3R.Vertical | Φ600 x 7500L x 3.Vertical |
Roll adjust | by air cylinder | by air cylinder | |
Driving motor | 3.7 HP DC | 7.5 HP DC | |
Take up unit | Rubber roll | Φ200 x 2400 mm | Φ270 x 7300 mm |
Driving motor | 2.2 KW DC | 3.75 KW DC | |
Cutting unit | Cutting system | Rotary Knife type | Rotary Knife type |
Motor | 0.75 KW geared | 0.75 KW geared | |
Sheet clamping | by air cylinder | by air cylinder | |
Winder | Winding diameter | max. Φ500 mm | max. Φ500 mm |
Driving motor | Geared motor & clutch | Geared motor & clutch | |
Heat & Cooling unit |
Heat & cooling media | by oil or water | by oil or water |
Heater | 10 KW x 3 zone | 15 KW x 3 zone |
Product used example
