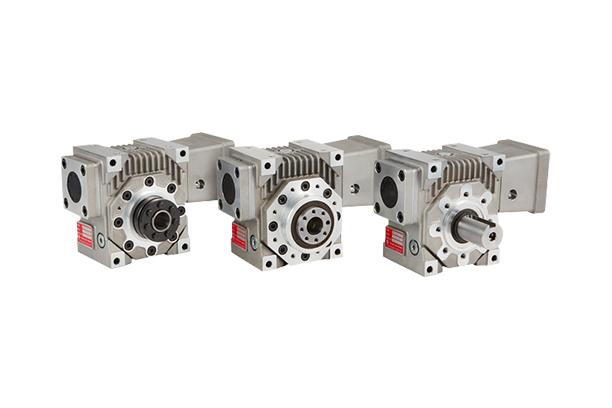

product Image
Dual Pitch Cavex Reducer
Model Name
-
Series
Dual Pitch Cavex Reducer
Data
-
Manufacturer information
provider logo
YOUNGJIN WORM

Precision Worm Reducer, Gantry Robot 3:1 Reducer, Dual Pitch Cavex Reducer, Dual Lead Worm, Screw Jack and more

Problem with product info?
Update request
Manufacturer
YOUNGJIN WORM
Brand
-
SKU
142176
Product Name
Dual Pitch Cavex Reducer
Model Name
-
Size
-
Weight
-
Product Details

듀얼피치 카벡스 웜 : 두개의 리드 값이 존재(특허 : 제 10-1705590호)

백래쉬 조정 전후 변화 모습

카벡스 웜은 웜 나사간이 오목한 형태의 웜을 말합니다.

카벡스 웜의 장점

  1. 인볼류트치형의 웜은 휠과 선접촉을 하는데 비하여 카벡스치형의 웜은 면접촉을 합니다.
    접촉면적의 균일한 증가로 인볼류트 치형의 웜보다 3~5배의 고하중을 전달할 수 있습니다.
  2. 인볼류트 치형보다 치의 강도가 증가됩니다.
  3. 면접촉을 하여 윤활유가 밖으로 밀려나가지 않고 웜과 웜휠 치면 사이에 균일하게 머물러 인볼류트치형 대비 약2~3배 유막이 빨리 형성되고, 유막 두께 또한 3~4배 높게 형성됩니다. 또한 두꺼운 유막의 형성이 가능해 웜 및 웜휠의 수명이 현저하게 증가됩니다.
  4. 인볼류트치형의 선접촉 웜에 비하여 효율이 20~30% 향상됩니다.
YOUNGJIN WORM
Precision Worm Reducer, Gantry Robot 3:1 Reducer, Dual Pitch Cavex Reducer, Dual Lead Worm, Screw Jack and more
YOUNGJIN WORM is a company specializing in the production of high-precision worm shafts and worm wheels contributing to the development of the best precision gear industry.   As a professional manufacturer of servo precision worm reducers (dual lead box), YOUNGJIN WORM is doing its best to contribute to the development of the precision gear industry in Korea with the experience and know-how accumulated for a long time. We are making ceaseless efforts to satisfy our customers in terms of quality, price, and delivery service with high-precision processing systems and the latest gear inspection equipment installed for achievement of the best efficiency. We will keep doing our utmost to become a first-class worm manufacturer by producing better products with superior information and technological power.We thank our customers for the unsparing guide and encouragement for our growth and development, and we look forward to the continuous use and participation of customers.
