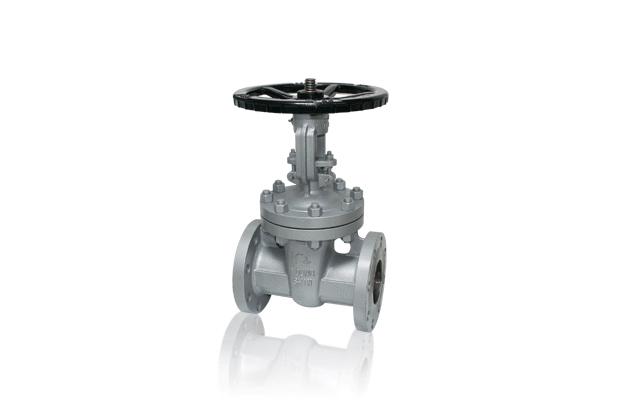

Flanged Out Side Gate Valves (Cast Steel 20K)
Model Name
-
Series
OS & Y Valve
Data
-
Manufacturer information
provider logo
YOUNGSHIN

Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more

Problem with product info?
Update request
Manufacturer
YOUNGSHIN
Brand
-
SKU
130882
Product Name
Flanged Out Side Gate Valves (Cast Steel 20K)
Model Name
-
Size
-
Weight
-
Product Details
Applicable fluid Water, Steam, Oil
Working Pressure 20KGf/cm²
Test Pressure Body 53KGf/cm²
Seat 39KGf/cm²
Applicable Temperature Max. 220℃





NO PART MATERIAL
1 BODY CAST STEEL (SCPH2)
2 TRIM 13CR
3 STEM STS403, STS410
4 BONNET CAST STEEL (SCPH2)
5 PACKING GLAND SF440A
6 HANDLE WHEEL GCD450
7 BONNET BOLT SM25C





DIMENSION

SIZE L D C g t-f n-Øh D。 H H₁
50 216 155 120 96 22-2 8XØ19 240 320 381
65 241 175 140 116 24-2 8XØ19 240 350 425
80 283 200 160 132 26-2 8XØ23 280 395 489
100 305 225 185 160 28-2 8XØ23 320 436 547
125 381 270 225 195 30-2 8XØ25 320 505 613
150 403 305 260 230 32-2 12XØ25 360 576 740
200 419 350 305 275 34-2 12XØ25 400 728 940
250 457 430 380 345 38-2 12XØ27 450 884 1143
300 502 480 430 395 40-3 16XØ27 500 1036 1350

Unit : mm

YOUNGSHIN
Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more
“Creation of Future Technology” Since Youngshin IND is established in 1973, we maximize the goods` competitive power by improving the productive capacity. Through developing new technology and careful quality management, we make an effort to satisfy and fulfill our customers` expectation. Mainly, we produce Flanged outside Gate Valves, Flanged inside Gate Valves, Flanged Lift Check Valve, Flanged Globe Valves, Flanged Swing Check Valves, and Strainer Screwed Type. In the course of the technical innovation, we provides valves with high quality and efficiency. Youngshin IND acquired ISO 9001 certification, and will come up to our customers more closely through the constant quality improvement.
