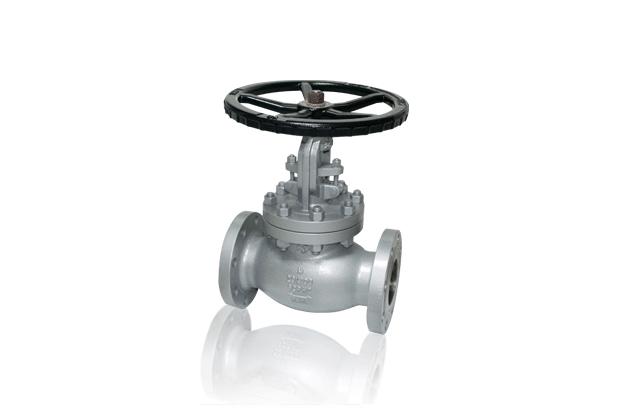

product Image
Flanged Globe Valve (Cast Steel 20K)
Model Name
-
Series
Globe Valve
Data
-
Manufacturer information
provider logo
YOUNGSHIN

Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more

Problem with product info?
Update request
Manufacturer
YOUNGSHIN
Brand
-
SKU
130884
Product Name
Flanged Globe Valve (Cast Steel 20K)
Model Name
-
Size
-
Weight
-
Product Details
Applicable fluid Water, Steam, Oil
Working Pressure 20KGf/cm²
Test Pressure Body 53KGf/cm²
Seat 38KGf/cm²
Applicable Temperature Max. 220℃





NO PART MATERIAL
1 BODY CAST STEEL (SCPH2)
2 TRIM 13CR
3 STEM STS403, STS410
4 BONNET CAST STEEL (SCPH2)
5 PACKING GLAND SF440A
6 HANDLE WHEEL GCD450
7 BONNET BOLT SM25C





DIMENSION

SIZE L D C g d t-f n-Øh H D。
50 267 155 120 96 50 22-2 8XØ19 289/314 240
65 292 175 140 116 65 24-2 8XØ19 319/347 240
80 318 200 160 132 80 26-2 8XØ23 345/382 280
100 356 225 185 160 100 28-2 8XØ23 395/426 360
125 400 270 225 195 125 30-2 8XØ25 441/485 400
150 444 305 260 230 150 32-2 12XØ25 510/561 450
200 559 350 305 275 200 34-2 12XØ25 737/790 560

Unit : mm
