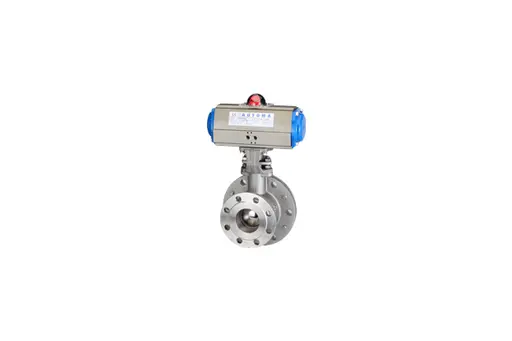

공압 자동밸브 (탱크 버텀 볼밸브) ATBB50-25F,ATBB65-40F,ATBB65-50F,ATBB80-65F,ATBB80-80F by (주)오토마

Valve Size	25A(1") ~ 150A(6")
Actuator Model	ATBB-Series
Actuator Type	Pneumatic Double Acting / Single Acting / Spring Return(with Dry Air)
Operating Media	Compressed Dry Air
Operating Pressure	4 ~ 7kg/㎠
Fluid Temperature	'-10℃ ~ 110℃
Rating	ANSI 150#
Material	Body(A216 WCB, A351 CF8, 8M) / Ball(A351 CF8, 8M/A182 F304, 316) / Seat(RTFE, RTFE, PEEK, Metal)
Accessory	Solenoid Valve, Limit Switch Box, Air Filter & Regulator, Speed Controller, E/P Positioner, Manual Handle

Unit : mm
Model	A1	H (Approx)	L	K	TANK PAD CONNECTION(MAKER STANDARD)
T	Ød	Øg	ØC	ØD	N-ØH
ATBB50-25F	75	235	93	28.5	25	25	49	105	140	4-15
ATBB65-40F	89	289	109	29	25	40	61	120	155	4-15
ATBB65-50F	89	302	124	32	28	50	77	140	175	4-15
ATBB80-65F	101	331	131	37	30	65	102	160	195	6-15
ATBB80-80F	101	351	153	45	32	80	140	210	250	6-19
ATBB100-100F	129	383	170	62.5	35	100	166	240	280	8-19
ATBB125-125F	151	450	254	62.5	43	125	192	265	305	8-19
ATBB140-150F	164	516	277	62.5	45	150	243	310	350	8-23
