OUTPUT(HP) | VOLTAGE/FREQ. | POLES | INSULATION CLASS | FIG NO. |
---|---|---|---|---|
7.5 | 170-310(V) / 38-50( Hz) | 4 | F | 1 |
10 | 4 | F | 1 | |
15 | 4 | F | 1 | |
20 | 4 | F | 1 | |
30 | 4 | F | 1 | |
40 | 4 | F | 1 |
DIMEn6ION(mm) | SHAFT | BRING NO. | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | F | G | H | φI | L | φM | N | J | E | φK | W | U | DRIVE | OPP.DRIVE |
548 | 310 | 115 | 5 | 498 | 178 | 212 | 345m6 | 450 | 268 | 6 | 415 | 70 | 40n6 | 107 | 4.5 | 6309zz | 6309zz |
612.5 | 375 | 115 | 5 | 498 | 178 | 212 | 345m6 | 450 | 268 | 6 | 415 | 70 | 40n6 | 107 | 4.5 | 6309zz | 6309zz |
528 | 310 | 115 | 10 | 518 | 178 | 212 | 345m6 | 450 | 308 | 6 | 415 | 70 | 40n6 | 107 | 4.5 | 6309uucm | 6308uucm |
568 | 310 | 115 | 10 | 518 | 178 | 212 | 345m6 | 450 | 308 | 6 | 415 | 70 | 40n6 | 107 | 4.5 | 6309uucm | 6308uucm |
665 | 390 | 150 | 5 | 630 | 237 | 237 | 510m6 | 580 | 370 | 8 | 545 | 95 | 55n6 | 157 | 5 | 6312uucm | 6309uucm |
725 | 450 | 150 | 5 | 630 | 273 | 273 | 510m6 | 580 | 370 | 8 | 545 | 95 | 55n6 | 157 | 4.5 | 6312uucm | 6309uucm |
STANDARD SPECIFICATION
GENERAL SPECIFICATIONS | FEATURES |
---|---|
Footless-MountedDrip-proofClass 'F Insulation System 4PolesRated output : 7.5,10,20,30,40HP Power source:310V,50Hz | Inverter Drive (Variable Voltage Variable Frequency Control) Service Factor:1.0Prelubricated Ball Bearing Short Time Duty(Rating:1 hour) Low Temperature Rise |

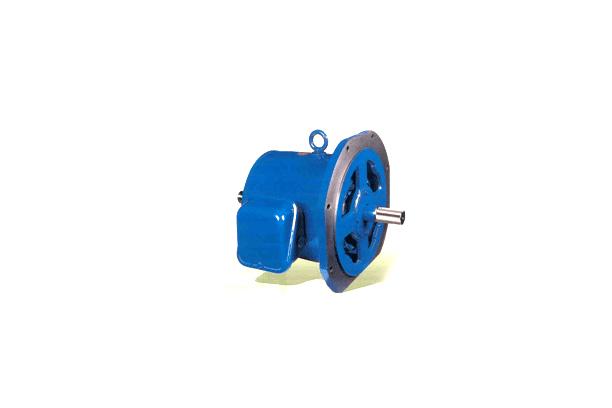

ELEVATOR MOTORS
