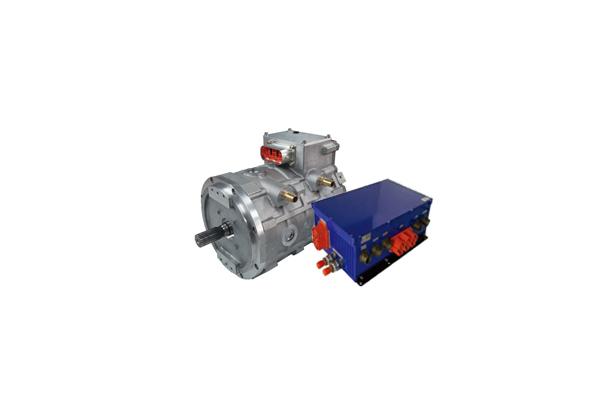

특장점
ㆍSeries HEV 버스, Truck 등에 최적화 설계
ㆍ고출력밀도로 소형, 경량화 실현
- 최적의 수냉식 냉각설계로 냉각효과 극대화
- 저철손의 고급 전기강판사용
ㆍ구조강도 안정성확보로 고속영역사용
ㆍSpline 혹은 Round Shaft
ㆍ고온 절연물 사용 및 인버터 Surge 대비 설계
ㆍNTC 온도센서 속도센서(Resolver or hall effect sensor)
중형버스 제원표
Motor Specification(60/120kW)
Item | Spec | Item | Spec |
---|---|---|---|
Motor Type | IPMSM Interior Permanent Magnet Synchronous Motor | Model | TBD |
Cooling Method | Water Glycol | Liquid Inlet | ↑12 litter/min |
Peak Power | 120kW @ 1,736r/min | Rated Power | 60kW |
Peak Power Speed | 1700 r/min | Rated Speed | 2390 r/min |
Peak Torque | 675N.m | Rated Torque | 240 N.m |
Motor Voltage | ~440Vac | Max Motor Speed | 8000r/min |
Insulation Class | ↑ F Class | Protection Degree | IP67 |
Weight | 97kg | Dimension | Refer to Drawing |
Speed Sensor | Resolver | Temp. Sensor | NTC |
Torque & Power Curve
대형버스 제원표
Motor Specification(160/180kW)
Item | Spec | Item | Spec |
---|---|---|---|
Motor Type | IPMSM Interior Permanent Magnet Synchronous Motor | Model | TBD |
Cooling Method | Water Glycol | Liquid Inlet | ↑16 litter/min |
Peak Power | 180kW @ 700r/min | Rated Power | 160kW |
Peak Power Speed | 686r/min | Rated Speed | 1270r/min |
Peak Torque | 2500N.m | Rated Torque | 1200N.m |
Motor Voltage | 450Vac | Max Motor Speed | 3450r/min |
Insulation Class | ↑ F Class | Protection Degree | IP65 |
Weight | 325kg | Dimension | Refer to Drawing |
Speed Sensor | Resolver | Temp. Sensor | PT 1000 |
Torque & Power Curve
