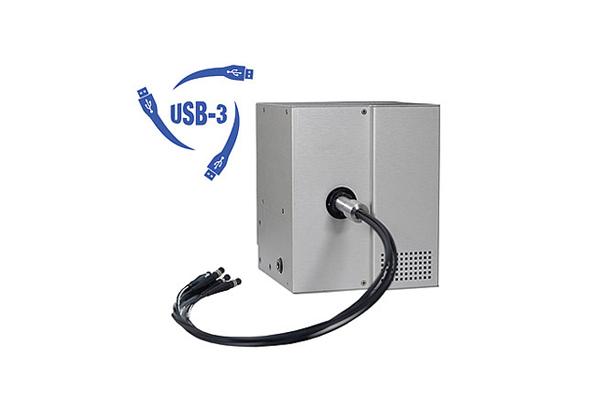

MultiTrack Spectrometer
모델명
PoliSpectra® M116
시리즈
Grating Spectrometers
자료
Catalog-Horiba-MultiTrack Spectrometer-M116
구매정보
provider logo
HORIBA

분광기, 분광 시스템, 그레이팅, 회절격자, 카메라 시스템, OEM 제조업체

연락처
+33 1-69-74-72-00
이메일
info-sci.fr@horiba.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
브랜드
-
SKU
137174
제품명
MultiTrack Spectrometer
모델명
PoliSpectra® M116
사이즈
-
중량
-
제품 상세 정보


Multispectra, Multifiber, Multichannel Imaging spectrometer with 8-16-32 Simultaneous UV-NIR Spectra

PoliSpectra Multichannel Spectrometer Optical Layout

HORIBA designs and manufactures a large range of custom OEM fiber-coupled, multi-spectra spectrometers capable of simultaneous measurement of up to 32 fiber channels and sequential measurement up to 96. Utilizing a concentric imaging spectrometer with a broadband spectral range and a customized fiber bundle, the HORIBA OEM multifiber spectrometers provide excellent imaging quality with minimum crosstalk.

The PoliSpectra® MultiTrack systems feature high throughput/ sensitivity and a 2D Scientific back-illuminated CMOS sensor which can be configured with 8,16 or 32 fiber input channels for simultaneous acquisition of UV-NIR spectra.

With an optional nitrogen purge, the system can be configured for low UV coverage. Additionally the high QE sCMOS sensor and an integrated order sorting filter allow wavelength coverage beyond 1 μm.



For OEM Industrial Applications

ㆍ Multitrack Spectroscopy
ㆍ Fluorescence, Emission and Reflectance
ㆍ Some examples from semiconductor applications to life sciences:
     - Quality Control
     - Light Source Calibration Monitoring
     - Plasma Monitoring
     - Blood/DNA Multisampling

ㆍ Simultaneous measurement up to 32 fiber channels with minimal crosstalk
ㆍ Extended UV capability below 200 nm
ㆍ High spectral and spatial resolution combined with high throughput
ㆍ High speed and low noise sCMOS 2048 pixels sensor
ㆍ On-board processing capability using powerful dual-core ARM cortex and 2 GB memory
ㆍ USB 3 Interface
ㆍ Stable and robust



Image of 8-channel Fiber Bundle Illuminated with Hg and Ar Lamp



Throughput Differences and Crosstalk between Input Fiber Channels



Scientific CMOS Back-Illuminated Sensor Quantum Efficiency



Thermal stability study cycling from -20ºC to 50ºC



Hyperspectral Imaging Distortions: Keystone and Smile



OEM Spectrometer Selection Guide





8-channel Spectrometer Specifications*
Spectral Coverage 185 - 1050 nm (extension to low UV with N2 purge)
Tunable at factory between these ranges: 185-920 nm and 280-1050 nm
Spectrometer Input 8 channel, φ200 μm core fibers with φ220 μm clad, separated by a φ220 μm dead fiber
Spectral Resolution 1.25 nm typical (22 μm slit width) and up, depending on the slit size
Spectral Dispersion 34.6 nm/mm; 0.38 nm/pixel
Crosstalk (Adjacent Channel)* < 0.1% (measured @ 600 nm)
Crosstalk (Non-adjacent Channel)* < 0.1% (measured @ 600 nm)
Focal Length 116 mm
F/# F/2.3
Smile and Keystone 1.5 pixel (typical)
Stray Light*** < 0.1% (typical)
Wavelength Accuracy 0.1 nm (using 8 channel wavelength calibration)
Software LabVIEW™ acquisition software for initial evaluation (DLLs provided for software integration)





16-channel and 32-channel Spectrometer Specifications
Spectral Coverage 185 - 1050 nm (configurable based on customer’s need)
Spectrometer Input 16 channel, φ100 μm core fibers with φ110 μm clad
32 channel, φ70 μm core fibers with φ77 μm clad
Spectral Resolution 1 nm and up depending on fiber core size
Spectral Dispersion 34.6 nm/mm; 0.38 nm/pixel
Focal Length 116 mm
F/# F/2.3
Smile and Keystone 1.5 pixel (typical)
Stray Light < 0.1% (typical)
Wavelength Accuracy 0.1 nm (using 32 channel wavelength calibration)





Specifications for Scientific Back-Illuminated CMOS Image Sensor with High Speed Electronics
Detector Model

sCMOS BI sensor with electronic rolling shutter (all the parameters are specified at
normal room temperature of 25º C unless otherwise noted)
Sensor Format**** 2048 x 512
CMOS Pixel Size  11 μm x 11 μm
CMOS Height  5.6 mm
CMOS QE The peak QE is 77% at 250 nm and 95% at 560 nm
Thermoelectric Cooling  Uncooled
Frame Rate 94 fps (HDR mode), 188 fps (STD mode) on 2D sCMOS sensor
Full Well 80 ke¯ typical (HDR mode)
Readout Noise 1.6 e¯ typical, 2.0 e¯ maximum
Digitization 16-bit (HDR mode), 12-bit (High Sensitivity mode)
Dynamic Range  93.9 dB typical in HDR mode
Non-linearity (measured on each system) 1.8% (maximum) in HDR mode <0.9% (maximum) in High Sensitivity mode
Communication  USB 3
Environmental Conditions

Operating temperature 15°C to 40°C ambient;
Relative humidity <70% (non-condensing); Storage temperature -25°C to 45°C
Power requirements
AC/DC power supply (provided)
90-264 VAC, 47–63 Hz



* Specifications, form factor, and spectrometer cover subject to change without notice. No LabVIEW license is needed to run our acquisition software.

** Crosstalk (to adjacent channels): the % of signal leaking to the adjacent channels while one channel is on and others are off.

*** Stray light using BP Filter: Baseline light level, outside the band, divided by BP peak (unsaturated) value.



Mechanical Drawings
