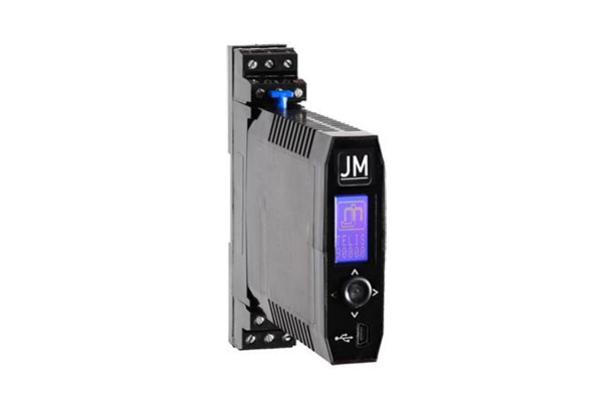

TELIS 9000 is a universal

Current (DC), Voltage (DC), Variable resistance probe, Thermocouple, Potentiometer, 2-wire resistance, Special table for NTC (PTC) converter, coupled with a sensor supply for each input, one or 2 isolated analog outputs and up to 4 relays and an RS485 Modbus RTU communication port.

TELIS 9000 is guaranteed for 5 years

Hot pluggable	Universal power supply	Sensor supply	MODBUS-RTU

TELIS 9000U0 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 22.5mm box

TELIS 9000U1 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 1 analog output 22.5mm box

TELIS 9000U2 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 2 isolated analog outputs 22.5mm box

TELIS 9100U0 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 1 relay output 22.5mm box

TELIS 9150U1 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 1 analog output 1 relay output 22.5mm box

TELIS 9250U0 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 2 relay outputs 22.5mm box

TELIS 9000U2-VW Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 2 isolated current analog outputs 1 RS485 output 22.5mm housing

TELIS 9200U0 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 2 relay outputs 1 RS485 output 45mm box

TELIS 9200U1 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 2 relay outputs 1 analog output 1 RS485 output 45mm box

TELIS 9200U2 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 2 relay outputs 2 isolated analog outputs 1 RS485 output 45mm box

TELIS 9300U0 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 3 relay outputs 1 RS485 output 45mm box

TELIS 9300U1 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 3 relay outputs 1 analog output 1 RS485 output 45mm box

TELIS 9400U0 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 4 relay outputs 1 RS485 output 45mm box

TELIS 9400U1 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 4 relay outputs 1 analog output 1 RS485 output 45mm box

TELIS 9400U2 Converter with display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 4 relay outputs 2 isolated analog outputs 1 RS485 output 45mm box

TELIS 9000T0 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 22.5mm box

TELIS 9000T1 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 1 analog output 22.5mm box

TELIS 9000T2 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 22.5mm box

TELIS 9100T0 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 1 relay output 22.5mm box

TELIS 9150T1 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 1 analog output 1 relay output 22.5mm box

TELIS 9250T0 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 1 relay output 22.5mm box

TELIS 9200T0 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 2 relay outputs 45mm box

TELIS 9200T1 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 2 relay outputs 1 analog output 45mm box

TELIS 9200T2 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 2 relay outputs 2 isolated analog outputs 45mm box

TELIS 9300T0 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 3 relay outputs 45mm box

TELIS 9300T1 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 3 relay outputs 1 analog output 45mm box

TELIS 9400T0 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 4 relay outputs 45mm box

TELIS 9400T1 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 4 relay outputs 1 analog output 45mm box

TELIS 9400T2 Converter without display Inputs : 1 universal input 2 Current inputs with digital calculation Universal power supply Outputs : 1 RS485 output 4 relay outputs 2 isolated analog outputs 45mm case
