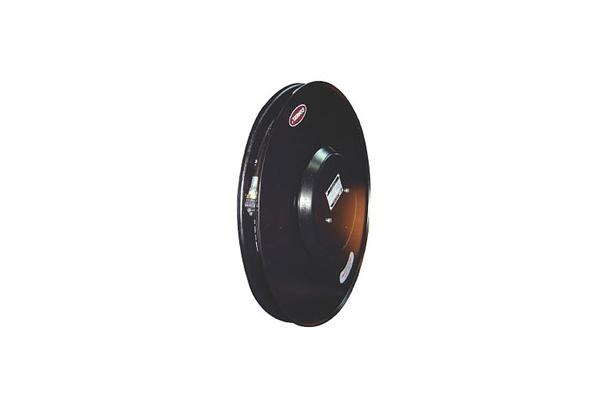

제품 설명
RH 시리즈(RH-TW) 제품 도면 (유의사항 : 도면의 치수는 제품마다 다릅니다.)
RH 시리즈(RH-TW) 제품사양표
MODEL | Hose Specification | 길이(M) | 사용압력(kg/㎠) | A | C | D | W |
---|---|---|---|---|---|---|---|
RH-610TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 10 | 195 | 205 | PT 1/4 | 500 | 32 |
RH-615TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 15 | 195 | 205 | PT 1/4 | 550 | 32 |
RH-620TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 20 | 195 | 205 | PT 1/4 | 650 | 32 |
RH-625TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 25 | 195 | 205 | PT 1/4 | 700 | 32 |
RH-630TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 30 | 195 | 205 | PT 1/4 | 760 | 32 |
RH-910TW | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 10 | 210 | 220 | PT 3/8 | 550 | 43 |
RH-915TW | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 15 | 210 | 220 | PT 3/8 | 650 | 43 |
RH-920TW | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 20 | 210 | 220 | PT 3/8 | 760 | 43 |
RH 시리즈(RH-TW-B, RH-WB) 제품 도면 (유의사항 : 도면의 치수는 제품마다 다릅니다.)
RH 시리즈(RH-TW-B, RH-WB) 제품사양표
MODEL | Hose Specification | 길이(M) | 사용압력(kg/㎠) | A | C | D | W |
---|---|---|---|---|---|---|---|
RH-630TW-B | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 30 | 195 | 286 | PT 1/4 | 760 | 32 |
RH-640TW-B | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 40 | 195 | 286 | PT 1/4 | 860 | 32 |
RH-925TW-B | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 25 | 210 | 296 | PT 3/8 | 860 | 45 |
RH-930TW-B | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 30 | 210 | 296 | PT 3/8 | 950 | 45 |
RH-940TW-B | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 40 | 210 | 296 | PT 3/8 | 1050 | 45 |
RH-625-4WB | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 25 | 195 | 350 | PT 1/4 | 760 | 63 |
RH-630-4WB | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 30 | 195 | 350 | PT 1/4 | 760 | 63 |
RH-640-4WB | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 40 | 195 | 350 | PT 1/4 | 860 | 63 |
RH-925-4WB | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 25 | 210 | 360 | PT 3/8 | 860 | 75 |
RH-930-4WB | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 30 | 210 | 360 | PT 3/8 | 950 | 75 |
