제품 설명

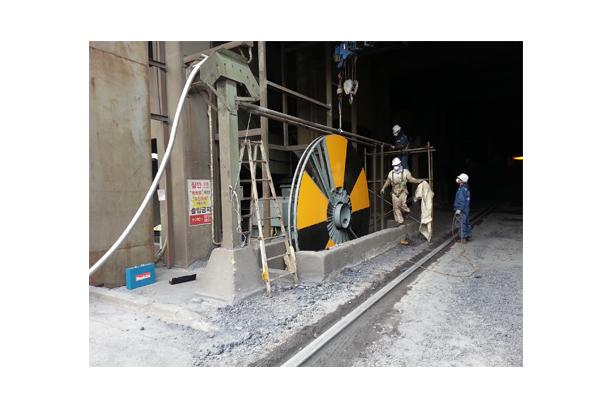

(AC 6.6KV HIGH VOLTAGE INDUCTION MOTOR TYPE CABLE REEL)
Induction Motor 구성품
1. BRAKE
2. LIMIT SWITCH
3. INDUCTION CRANE MOTOR
4. UCP BEARING
5. CONTROL SLIP RING
6. COUPLING
7. POWER SLIP RING
8. REDUCER
9. UCP BEARING
10. CHAIN SPROCKET
11. UCP BEARING
12. DRUM BOSS
Induction Motor 제품도면 (유의사항 : 도면의 치수는 제품마다 다릅니다.)
NO. | SLIPRING CURRENT |
CABLE 사양 (ROUND TYPE) |
ØA | C | WINDING LENGTH (ØB ) | |||
---|---|---|---|---|---|---|---|---|
100m | 150m | 200m | 250m | |||||
1 | 200A | 60sq × 4c | 1600 | 85 | 3800 | 4400 | 5000 | 5400 |
2 | 300A | 60sq × 4c | 1600 | 95 | 4000 | 4700 | 5300 | 5800 |
3 | 400A | 60sq × 4c | 1600 | 105 | 4200 | 4900 | 5500 | - |
