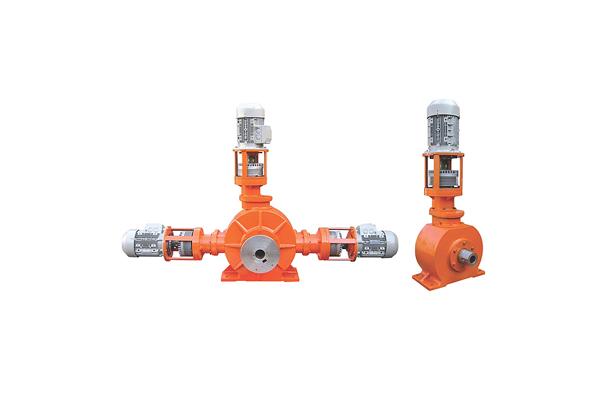

제품 설명
STANDARD EXPLANATION
- Flange Motor
- Back Stop Bearing
- Jaw Coupling
- Magnet Disk
- Magnet Block
- Planetary
- Secondary Gear Box
- Bevel Main Gear Box
Magnet Coupler 외형도
TYPE | TORQUE | CABLE SPEC. | CABLE LENGTH |
---|---|---|---|
SKMD1 - L | MAX. 45Kg-m | 8sq x 4c∼38sq x 4c | 50m ∼ 100m |
TYPE | TORQUE | CABLE SPEC. | CABLE LENGTH |
---|---|---|---|
SKMD1 - M1 | MAX. 70Kg-m | 14sq x 4c∼60sq x 4c | 50m ∼ 100m |
TYPE | TORQUE | CABLE SPEC. | CABLE LENGTH |
---|---|---|---|
SKMD1 - M2 | MAX. 140kg-m | 38sq x 4c∼100sq x 4c | 50m ∼ 100m |
TYPE | TORQUE | CABLE SPEC. | CABLE LENGTH |
---|---|---|---|
SKMD1 - M3 | MAX. 210Kg-m | 60sq x 4c∼200sq x 4c | 50m ∼ 150m |
Magnet Coupler 제품도면 (유의사항 : 도면의 치수는 제품마다 다릅니다.)
TYPE | TORQUE | CABLE SPEC. | WINDING SPEED | FEEDING METHOD | Acceleration Time |
---|---|---|---|---|---|
SKMD1L1V-2220-3 | Max. 50kg-m | PNCT 22SQ*4C | Max. 50m/min | Vertical Feeding Type |
1.0 sec. |
SKMD1L2V-2530-4 | Max. 80kg-m | PNCT 25SQ*4C | Max. 25m/min | Vertical Feeding Type |
1.0 sec. |
SKMD1M2V-3545-4 | Max. 90kg-m | PNCT 35SQ*4C | Max. 20m/min | Vertical Feeding Type |
1.0 sec. |
SKMD1L1H-2550-4F | Max. 40kg-m | PNCT-F 25SQ*4C | Max. 30m/min | Horizontal Feeding Type |
3.0 sec. |
SKMD1L2H-9570-4F | Max. 75kg-m | PNCT-F 95SQ*4C | Max. 40m/min | Horizontal Feeding Type |
3.0 sec. |
SKMD1M1H-120100-4S | Max. 90kg-m | PNCT-F 120SQ*4C | Max. 50m/min | Horizontal Feeding Type |
3.0 sec. |
