Key Features
Productive

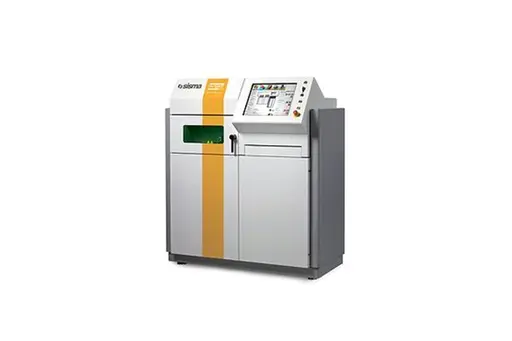

Thanks to the patented Tilting Coater, MYSINT 100 offers reduced re-coating times, increasing the production capacity.
Versatile
Each machining parameter and the entire production strategy are fully customizable to adapt to every specific need.
Reliable
The stable and uniform flow of inert gases ensures the best fusion stability minimizing consumption (patented system).
Technical data
|
|
MYSINT100 |
MYSINT100 Dual Laser |
|
Building volume |
Ø 100 mm x 100 mm |
|
|
Laser source |
Fiber Laser 200 W (on the substrate) |
2x Fiber Laser 200 W (on the substrate) |
|
Precision optics |
Quartz F-Theta Lens |
|
|
Laser spot diameter |
55 µm |
2x 55 µm |
|
Typical layer thickness |
20 µm - 40 µm (adjustable/regolabile) |
|
|
Max power absorbed |
1.53 KW |
1.9 KW |
Applications
