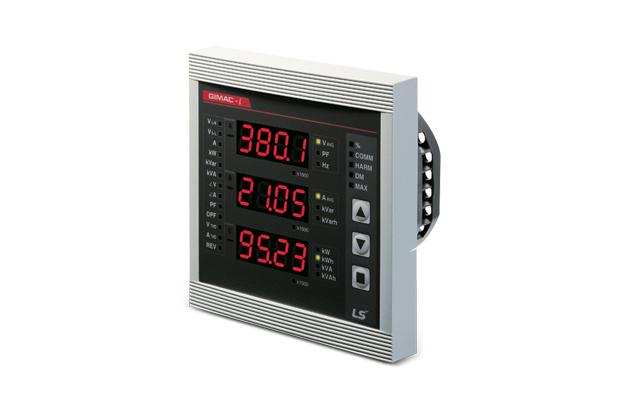

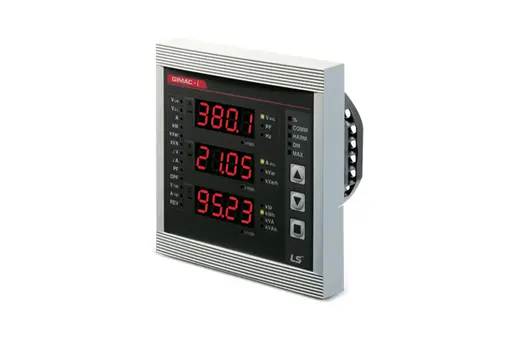

GIMAC-i
Economic digital power meter most often used for general electricity or power quality measurements.
Features
Measurement Function
ㆍHigh precision measurement of various measurement elements (21 elements)
ㆍExtended power quality measurement (15th)
ㆍWide range of PT voltage inputs
Convenience Function
ㆍVoltage phase direction check function
ㆍCompact appearance and panel cutting size
ㆍSupport for wide voltage environment (AC/DC 88~264V)
Communication function
ㆍRS485/RS422 MODBUS
Measurement
Specification
Rating | Specification | ||
---|---|---|---|
Wirings | 1P2W, 1P3W, 3P3W, 3P4W | ||
Input | Frequency | 50Hz/60Hz | |
Voltage | PT | AC 10~452V | |
Current | CT | 0.05~6A | |
Control voltage | AC/DC 88~264V (Free voltage) | ||
Power consumption | Max. 2W | ||
Burden | PT | Max. 0.5VA | |
CT | Max. 0.5VA | ||
Insulation Resistance | Over DC 500V 100㏁ | ||
Insulation Voltage | AC 2kV (1kV) / 1min | ||
Impulse Voltage | AC 5kV (3kV) / 1.2×50㎲ | ||
Overload withstand | Current circuit | 1.2 In for 3 hours 8 In for 2 seconds |
|
Voltage circuit | 1.15 Vn for 3 hours | ||
Fast Transient/Burst Immunity | Power Input 4kV | ||
ESD (Electrostatic Discharge) | Air 8kV Contact 6kV |
||
Operation temperature | -10℃ ~ 55℃ | ||
Storage temperature | -25℃ ~ 70℃ | ||
Humidity Average | Within 80% RH, no condensation | ||
Altitude | 2000m and below | ||
Others | Non-impact place Non-air pollution place |
||
Standard | IEC 60255, IEC61000-4 | ||
Communication | MODBUS/RS485 | ||
Dimension(W×H×D) | 144×144×85 (mm) | ||
Weight | 0.52 kg |
