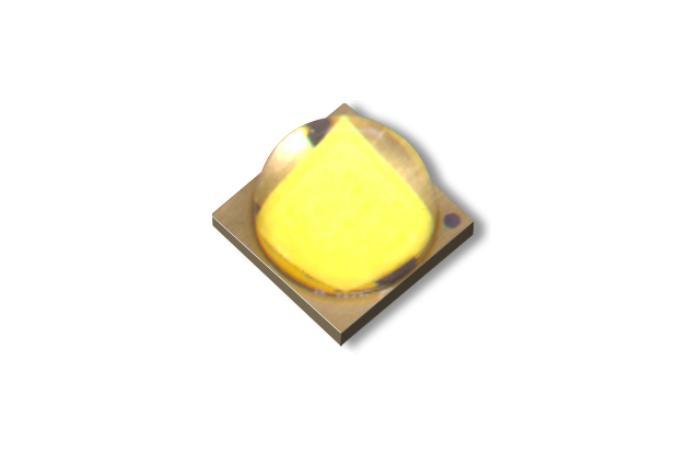

The Most Reliable Flip-Chip Ceramic Package
Applications
Specifications
Model Number | CRI [Ra] |
Color Temp [K] |
Watts [W] |
Luminous Flux [lm] |
Luminous Efficacy [lm/W] |
Forward Voltage [VF] |
Forward Current [mA] |
Max forward Current [mA] |
LH3535F1W830E00 | 80 | 3,000 | 1.0 | 146 | 144 | 2.89 | 350 | 1,500 |
LH3535F1W850E00 | 80 | 5,000 | 1.0 | 164 | 164 | 2.89 | 350 | 1,500 |
