FEATURES
- Size : 7.0 x 2.0 x 0.8 mm

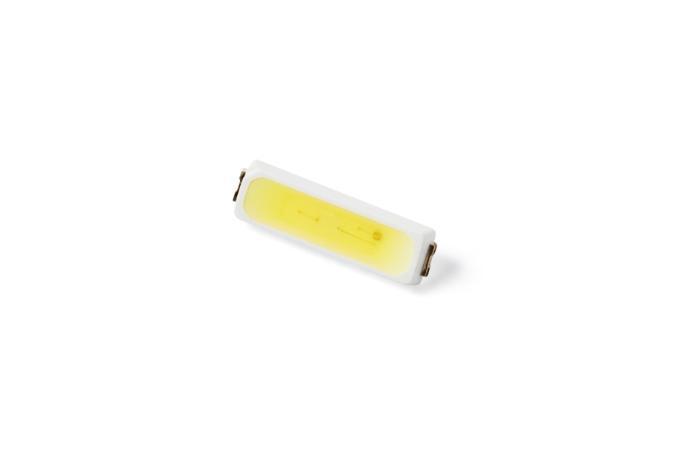

- High power white color surface mount TOP LED
- High flux output Flat type LED
- High Color Gamut (Over NTSC 90%)
- High Reliability and Uniformity
APPLICATION
Back Light Unit for TV
FHD, HD
Specifiations
Model Number | Size [mm] |
Forward Current [mA] |
Luminous Intensity [cd] |
Luminous Flux [lm] |
Forward Voltage [VF] |
Chip | Phosphor |
7020-KSF | 7.0 x 2.0 x 0.8 | 120 | 24 | 63 | 6.1 | Lateral 2 chip |
KSF+Nitride |
