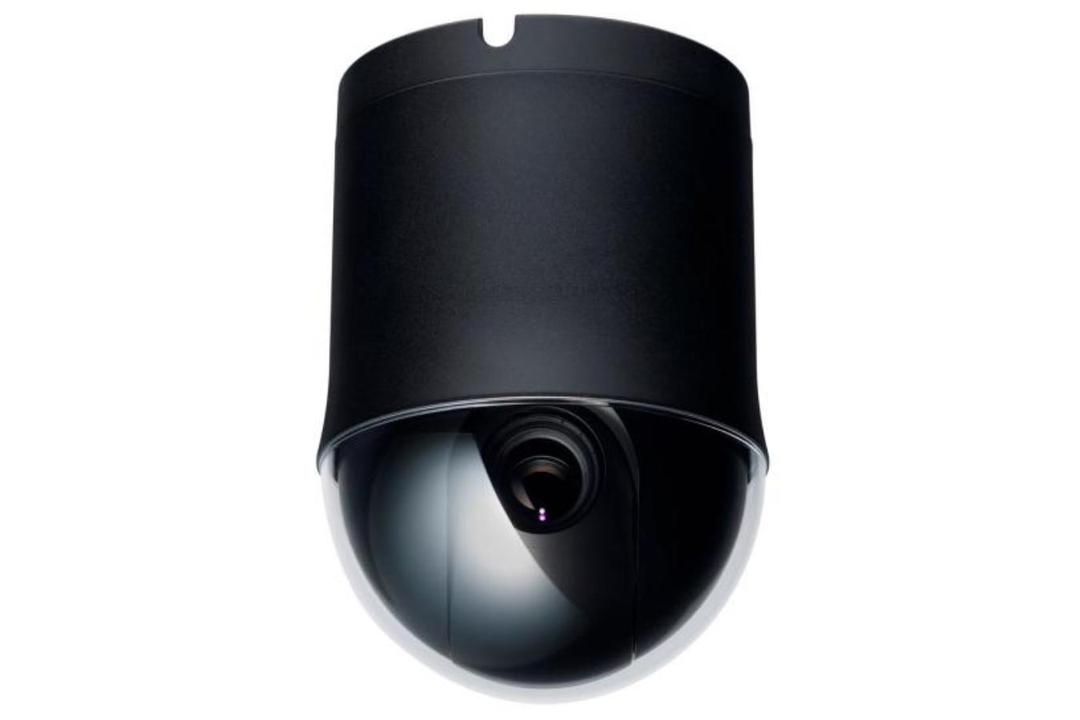

• H.264/MJPEG, IP Dome Camera
• Dual Streaming & High Performance
• Progressive Frame Mode
• Bult-in De-interlacer.
• Optional IEEE 802.3at Power over Ethernet(PoE)
• Built-in Optical Power Zoom Camera.
• 240 Presets programmed with view direction, zoom, focus, and AE.
• 8 Tours consist of Preset, Pattern, Auto-Scan and other Tours can be
programmed with over 63 functions and Preset location. While moving,
each Preset scan can be watched in smooth Diagonal Scan mode.
• 8 Auto Scans suports diagonal move with zoom and the endless
Auto-Pan with 8 speed steps.
• 4 Patterns (up to 240 second) .
• 16 Area Titles.
• Variable speed from 0.1°/sec to 90°/sec.
Turbo speed is Max 360°/sec when the TURBO key is pressed.
• Preset Speed Max 360°/sec
• 8 Privacy Zones: Video off or up to 8 masked blocks
• Addressable up to 999 camera IDs (Extendable up to 3999 in special mode).
• Built-in RS-485 receiver driver.
• On-site firmware upgrade and upload/download of programmed data into
the KBD or base on the PTZ Dome camera. ( Full function version only.)
• Built-in power-line surge protection and lightning protection.
• Optional Tinted Bubble, Indoor & Outdoor pendant housing with heater & blower,
Indoor Flush Mount, Parapet mount & Roof Top mount.
• Adaptive tilt limit control according to the zoom ratio provides more
useful picture.
• All function to be programmed and executed via menu
