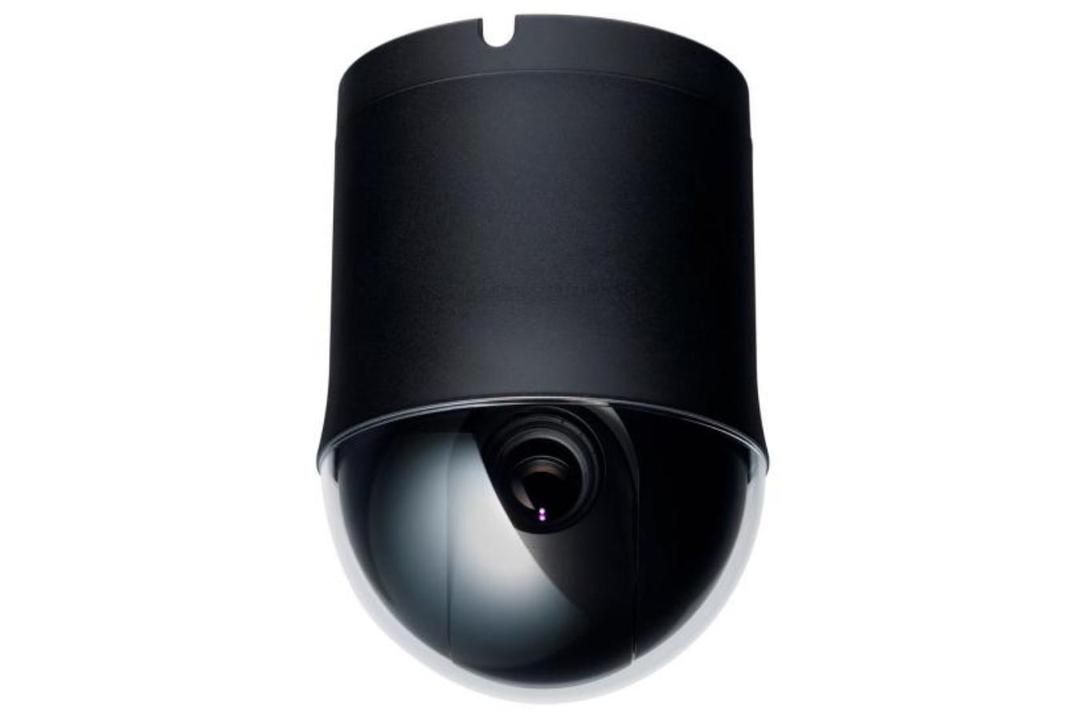

• Built-in Optical Power Zoom Camera.
• 248 Presets programmed with view direction, zoom, focus, and AE.
• 8 Tours consist of Preset, Pattern, Auto-Scan and other Tours can be programmed with
over 377 functions and Preset location. While moving, each Preset scan can be watched
in smooth Diagonal Scan mode.
• 16 Auto Scans suports diagonal move with zoom and the endless Auto-Pan
with 8 speed steps.
• 8 Patterns (up to 480 second) .
• 24 Area Titles.
• Variable speed from 0.1°/sec to 420°/sec.
Turbo speed is Max 420°/sec when the TURBO key is pressed.
• Optional 8 Alarm inputs with 0~8 priority / 2 Auxiliary outputs
programmable
• 8 Privacy Zones: Video off or up to 24 masked blocks
• Addressable up to 999 camera IDs
(Extendable up to 3999 in special mode).
• Built-in RS-485 receiver driver.
• On-site firmware upgrade and upload/download of programmed data into the KBD
or base on the PTZ Dome camera. ( Full function version only.)
• Built-in power-line surge protection and lightning protection.
• Optional Tinted Bubble, Indoor & Outdoor pendant housing with heater & blower,
Indoor Flush Mount, Parapet mount & Roof Top mount.
• Adaptive tilt limit control according to the zoom ratio provides more
useful picture.
• Temperature sensing heater control
• Automatic position compensation using the built in magnetic encoder.
(Real-Time Position Correction)
• Motion tracking function to follow intruder
• The motion detection sensor can detect up to 16 motion objects
at the same time.
• Block mode alarm preset provides a useful scanning method.
• On screen popup menu provides a easy way to control the dome system using
simple keyboard.
• Adaptive tilt limit control according to the zoom ratio provides more
useful picture.
• Graphical on screen display
• Multi-Language up to 5.(TBD)|
