Detailed Description
■ Input power DC12~24V, 3A
■ Available tools : KT, FT, ET, HTC,YFC
※ KT-38D with ver.lower than v4.3 can not be used.
■ No of Program 9999 programs
■ Count number 9999 for each program
■ Screwdriver port 2 ports (RJ-45)
■ Com port : 1 x RS232C, 1 x USB(B), 1 x USB(mini B)
1 x Ethernet (10/100 LAN)
■ Input / Output Input 8, Output 8
■ External Memory 1 x SD memory slot, Max 8GB

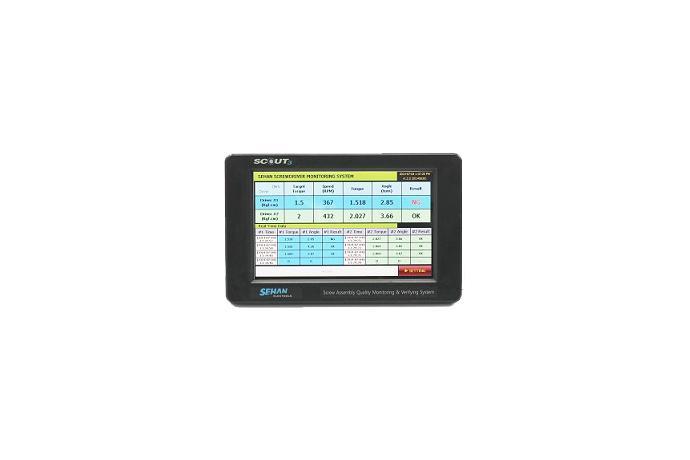

■ LCD Samsung 7" TFT LCD with touch
■ Program share Maximum 2 screwdrivers
■ Processor ARM926EJ 400MHz / ARM11 800MHz
■ Internal memory 128MB SD RAM / 256MB SD RAM
Series features
■ Maximum 2 screwdrivers can share one program of Scout
■ OK / NG judgment for each fastening
■ Job & step management by flexible multiple programing
■ Limitless number of program ( Job, Step... )
■ External memory with SD card
■ Flexible digital I/O
■ Display of the remained screw number to be fastened
■ Variable signal type of the cycle start and stop
■ Error display with beep sound
■ Display of the fastening error information
■ Built in Fastening time measurement function
