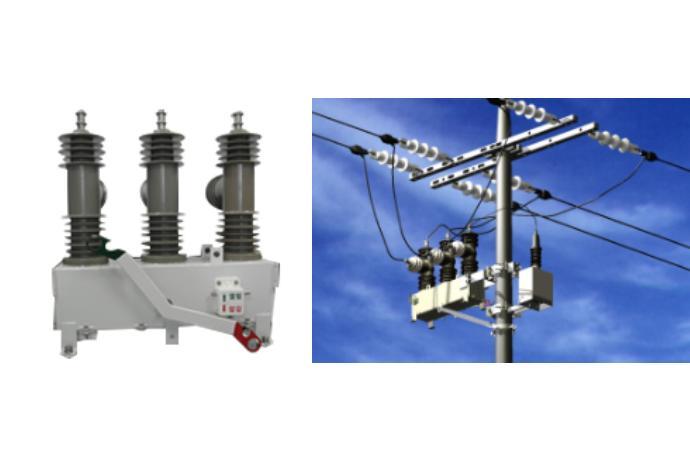

GENERAL FEATURES
- 3 phase for overhead lines operating at a voltage up to 38kV.
- Oil-less and maintenance-free operation with SF6 gas.
- Related parts and devices installed and hermetically sealed inside a stainless steel tank.
- Manually and electrically operated to suit your power line requirements.
- Certified in accordance with IEC 60694 (1996), IEC 60265-1 (1998)
TECHNICAL DATA
Description | SPG-15-6 | SPGAS-2 | SPGAS-36 |
---|---|---|---|
Rated Maximum Voltage | 15 kV | 25.8 kV | 38 kV |
Rated Continuous Current | |||
Rated Impulse Withstand Voltage (BIL) | 110 kV | 150 kV | 195 kV |
Rated Short Time Withstand Current (rms) | 20 kA (4sec) | 25 kA (1sec) | 25 kA (1sec) |
Electrical Operations | 400 times | 400 times | 400 times |
Mechanical Operations | 10,000 times | 10,000 times | 10,000 times |
GENERAL FEATURES
- Hydrophobic epoxy resin
- Environmentally friendly and easy to repair and maintain
- Vacuum interrupter with excellent insulation and interrupting capacity
- Short arc time and excellent insulation recovery characteristics
- Electrical and mechanical trip free functions
- 3 CT`s and 6 voltage sensors
- SCADA mate
TECHNICAL DATA
DESCRIPTION | SILO |
---|---|
Rated Maximum Voltage | 25.8 kV |
Rated Continuous Current | 630 A |
Rated Short-Time Withstand Current | 12.5kA / 1 seg |
Making Current | 32.5 kA(Máximo), 5 vezes |
Power Frequency Withstand Voltage | 60 kV / 1 min (Seco) 50 kV / 10 seg (Húmido) |
Impulse Withstand Voltage | 150 kV |
