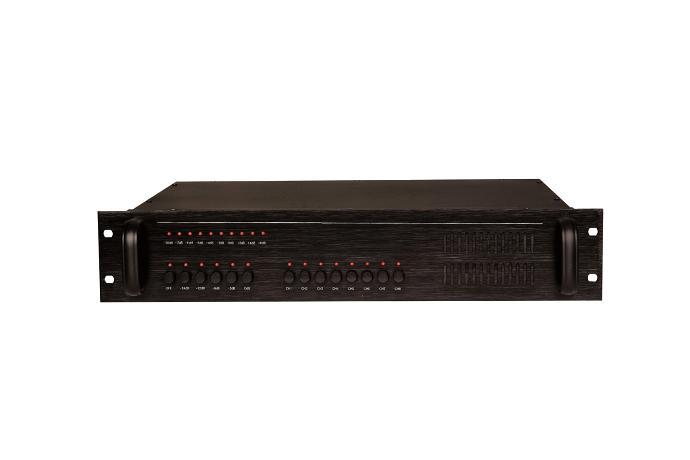

Monitor Panel
모델명
시리즈
Public Address System
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
Feature of Product
•Up to 5 power amps can be selected with the channel selection switch, and the output level of selected amp can be checked(LED level meta).
•Its speaker volume adjustor enables the adjustment to appropriate sound volume.
•It high power speaker provides rich and clear sound quality when checking the output condition.
Size and Function
•Channel selector switches : 5ch(Amp Output 100V)
•LED indication : 1
•monitor speaker with attenuator : 0,-6,-12,-18,-24dB, OFF
•Monitor Speaker : 1W/8Ω
•Power Source : DC24V
•Weight : 1kg
•Dimensions : 270(W) x 44.5(H) x 320(D)mm
Feature of Product
•Up to 8 power amps can be selected with the channel selection switch, and the output level of selected amp can be checked(LED level meta).
•Its speaker volume adjustor enables the adjustment to appropriate sound volume.
•It high power speaker provides rich and clear sound quality when checking the output condition.
Size and Function
•Channel selector switches : 8ch(Amp Output 100V)
•LED indication : 1
•monitor speaker with attenuator : 0,-6,-12,-18,-24dB, OFF
•Monitor Speaker : 3W/8Ω
•Power Source : DC24V
•Weight : 4kg
•Dimensions : 483(W) x 89(H) x 320(D)mm
