신성전자(주)

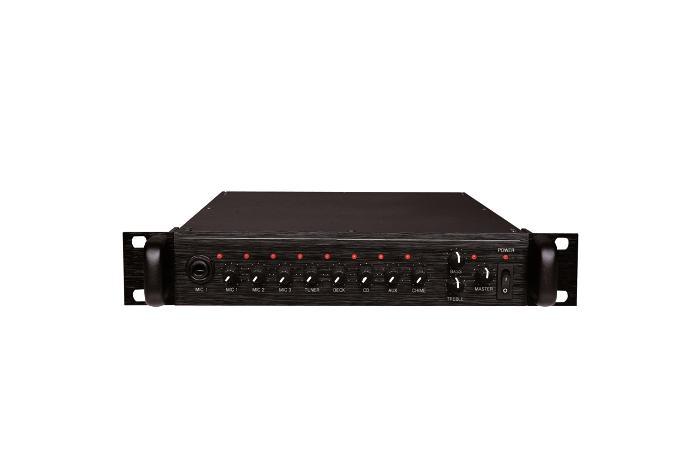

Pre Amplifier
모델명
시리즈
Public Address System
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
Feature of Product
•This device mixes or amplifies 8CHANNEL input signal of MIC1~3,CHIME/CD/AUX/TUNER/DECK.
•Based on its signal to noise ratio above 60dB and low distortion under 0.5%, it ensures high performance.
•It gives priority to MIC1, making it take precedence over other signal source(MUTE).
•Lamp is on to inform whether the signal is present in the input/output signal source, and the electronic balance system was applied to the input/output circuit.
•It provides REC output function.
Size and Function
•THD : 0.5%
•Frequency Response : 80Hz-18kHz
•TONE CONTROL : Bass-100Hz±12dB, Treble-10kHz±12dB
•Inputs : Mic-60㏈/600Ω(BALANCED), CD-20㏈/47㏀(UNBALANCED)
•Deck-20㏈/47㏀(UNBALANCED), Aux-20㏈/47㏀(UNBALANCED)
•Chime-20㏈/47㏀(UNBALANCED)
•Outputs : main output-0㏈/600Ω(BALANCED), Rec output-20㏈/1㏀(UNBALANCED)
•S/N : 60dB
•Power Source : DC 24V
•Weight : 2.1kg
•Dimensions : 270(W) x 44.5(H) x 320(D)mm
Feature of Product
•This device mixes or amplifies 8CHANNEL input signal of MIC1~3, CHIME/CD/AUX/TUNER/DECK.
•Based on its signal to noise ratio above 60dB and low distortion under 0.5%, it ensures high performance.
•It gives priority to MIC1, making it take precedence over other signal source(MUTE).
•Lamp is on to inform whether the signal is present in the input/output signal source, and the electronic balance system was applied to the input/output circuit.
•It provides REC output function.
Size and Function
•THD : 0.5%
•Frequency Response : 80Hz-18kHz
•TONE CONTROL : Bass-100Hz±12dB, Treble-10kHz±12dB
•S/N : 60dB
•Inputs : Mic-60dB/600Ω(BALANCED)
CD-20㏈/47㏀(UNBALANCED)
Deck-20㏈/47㏀(UNBALANCED)
Aux-20㏈/47㏀(UNBALANCED)
Chime-20㏈/47㏀(UNBALANCED)
•Outputs : main output-0dB/600Ω(BALANCED)
Rec output-20dB/1㏀(UNBALANCED)
•Power Source : DC 24V
•Weight : 3.5kg
•Dimensions : 483(W) x 44.5(H) x 320(D)mm
