Feature of Product

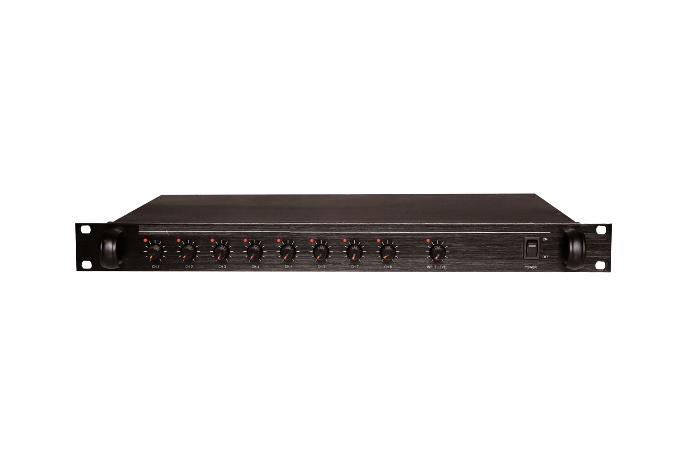

•This audio signal distributing device receives one channel and distribute it to 8 channels.
•Using the signal displaying LED on the input/output channel, it enables the verification of channel.
•With its built-in balance circuit for input/output circuit, it prevents the noise.

Size and Function

•Input Level : 0dB/15KΩ(BALANCED)
•Output Level : 0dB/600Ω(BALANCED)
•Frequency Response : 20Hz~20kHz
•S/N : 75dB
•Power Source : DC24V
•Weight : 3kg
•Dimensions : 483(W) x 44.5(H) x 320(D)mm
