Feature of Product
•Composed of the circuit for SHINSUNG data remote, two groups of 32 channels are available.
•Users can connect this device to the remote control terminal of Matrix Logic(DML-2116) for use.
Size and Function
•DATA : 32CH
•Control : 32CH, 2 Group
•Power Source : DC24V
•Weight : 3.4kg
•Dimensions : 483(W) x 44.5(H) x 320(D)mm
Feature of Product
•Composed of RM1 – RM5, it can be used when expanding the remote control. In addition, signal conversion function is provided.
Size and Function
•Control Input : 16CH, 5 Group
•Control Output : 16CH, 1 Group
•Input Signal : 5CH
•Output Signal : 1CH
•Power Source : DC24V
•Weight : 2.1kg
•Dimensions : 483(W) x 44.5(H) x 320(D)mm

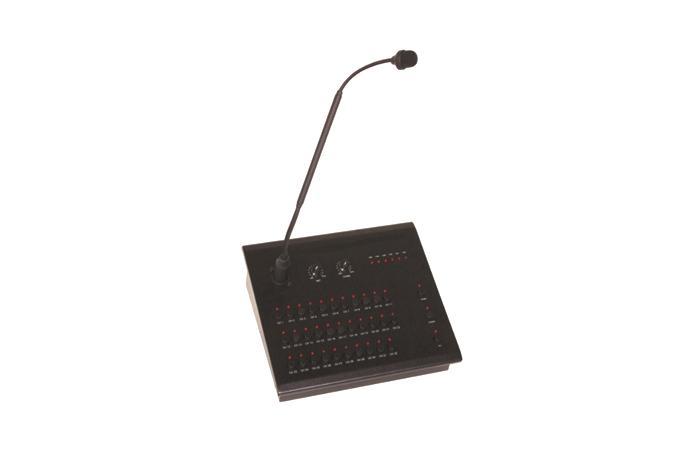

Feature of Product
•This device enables the broadcasting through the speaker by remotely controlling the relay group of public address broadcasting(16 channels).
•The displaying lamp(LED) is fitted with 5 DOT LED output level meta on its frontal panel, allowing the condition of switch to be figured out conveniently.
•4 musical scale chime circuit was adopted which informs the beginning and the end of broadcasting, and the high sensitivity microphone and javara microphone facilitate the operation.
Size and Function
•Controls : All, channels 1-32
•Selector Switches/indicator : All, channels 1-32
•Output Impedance : +3dB/600Ω(BALANCED)
•MIC :-60dB/10㏀(UNBALANCED)
•Frequency Response : 80Hz-18kHz
•Power Source : DC 24V
•Weight : 2.8kg
•Dimensions : 250(W) x 220(H) x 87(D)mm
Feature of Product
•This device enables the broadcasting through the speaker by remotely controlling the relay group of public address broadcasting(16 channels).
•The displaying lamp(LED) is fitted with 5 DOT LED output level meta on its frontal panel, allowing the condition of switch to be figured out conveniently.
•4 musical scale chime circuit was adopted which informs the beginning and the end of broadcasting, and the high sensitivity microphone and javara microphone facilitate the operation.
Size and Function
•Control Output : All, channels 1-16
•Selector Switches/indicator : All, channels 1-16
•Output Impedance : +3dB/600Ω(BALANCED)
•MIC :-60dB/10㏀(UNBALANCED)
•Frequency Response : 80Hz-18kHz
•Power Source : DC 24V
•Weight : 1.75kg
• Dimensions : 250(W) x 185(H) x 80(D)mm
