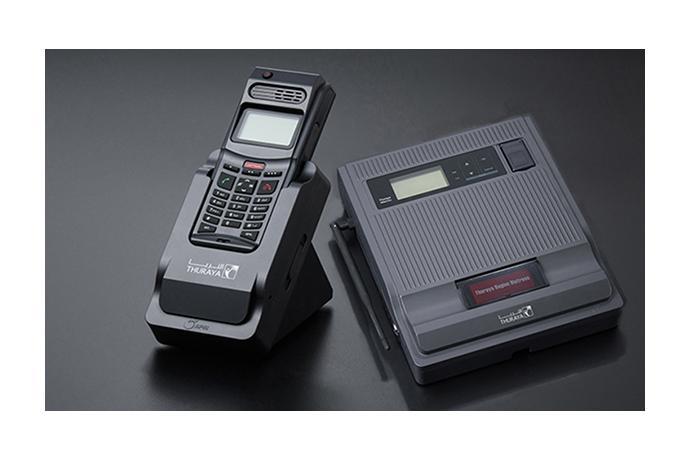

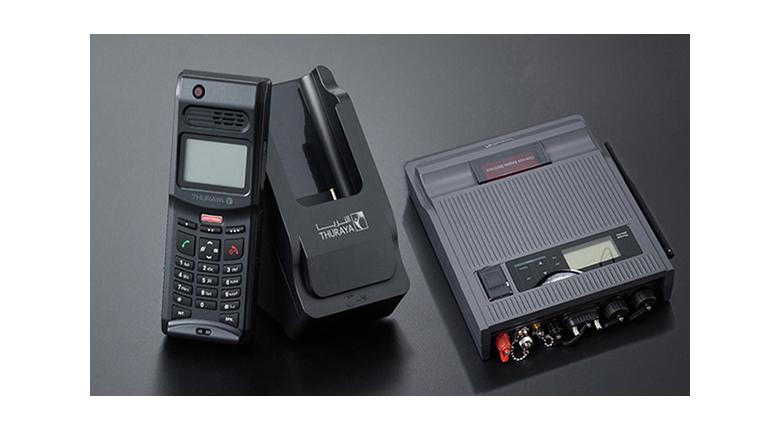

Thuraya Marine
Model Name
-
Series
Satellite Communication Sector
Data
-
Manufacturer information
provider logo
AP SATELLITE

Satellite & Satellite Communication Device Manufacturer, Satellite Smartphone, Satellite Bus System Design and more

Problem with product info?
Update request
Manufacturer
AP SATELLITE
Brand
-
SKU
53705
Product Name
Thuraya Marine
Model Name
-
Size
-
Weight
-
Product Details

Thuraya Marine Modem is a Thuraya Maritime Solution which provides phone call connections, fax, data service, GmPRS and more when you are out travelling on the sea. Marine telecommunications is a must for all sailors who may possibly be exposed to dangerous situations on the water. It is the only for all working sailors to connect with the land.

1.Maximum 4 sets of wireless headsets

2.Very affordable phone plans

3.Immediately inform an emergency situation by using the built-in Distress button

4.Send off current location through the built-in GPS system

5.Supports circuit switched data service at speeds up to 9.6 kbps

6.Supports calls, SMS, fax and Internet connectivity

7.IP66 Waterproof

8.Strong structure from aluminum die casting

9.CE certified



1) THURAYA MARINE BODY

DisplayLCD126 x 64 pixel
KeypadPowerPower on/off switch
DistressEmergency on/off switch
Up/Down/OK/CancelSelect menu funtion
External Interface
(All lp66 support)
TEL/FAX(RJ-45)Support External telephone & G3 Fax Connection
USB & DTE(B-type/D-sub)Support External Device or PC Connection
SAT & GPS(TNC/SMA)Support SAT & GPS Antenna Connection
SIMSIM Insert Port
DC INDC Input Port
GeneralSize260mm(H) x 220mm(W) x 57mm(D)
MaterialAluminum Die-casting
Operation Temperature-5℃ ~ +55℃
Input Power10 ~ 24VDC

2) THURAYA MARINE HANDSET

DisplayLCD16 character x 4 line
KeypadPowerPower on/off switch
F1/F2/F3Flexible funtional key button
Send/EndCall Start / Stop button
NavigationUp/Down & Short key button
DistressEmergency on/off switch
NumberNumber key
INT/SPKIntercom/Speaker phone funtion
GeneralAudio InterfaceReceiver/MIC/Speaker/Ear Jack
Size138mm(H) x 570mm(W) x 24mm(D)
MaterialABS
Operation Temperature-5℃ ~ +55℃
Input Power15VDC

3) THURAYA MARINE ANTENNA


Electrical
SpecificationsPolarization LHCP fot Thuraya band / RHCP for GPS
RX/TX Frequency1525.0MHz ~ 1559.0MHz / 1626.5MHz ~ 1660.5MHz
EIRP> + 8dBW
G/T> - 22dB/K
Cable length12m(standard), OPtional 20m, 35m, 50m
Input Power+12VDC Via GPS port
Mechanical
Specifications
Size190mm(Diameter) x 230mm(Height)
Weight2.5kg(Gift box which all items contained=5.5kg)
Environmental
Specifications
Operation Temperature-25deg.C ~ +55deg.C
Solar Radiation1120 W/m2
Relative Humidity95% non-condensing @ 40deg.C
Rain12.5mm nozzle 10 l/min at 3m
WindUp to 200 Km/hour
VibrationSweep 2Hz~13.2Hz at ± 8mm, 13.2Hz ~ 100Hz at 7m/s2 and 2h on each resonance otherwise 2h at 30Hz in all three axes
IP66
