Telematics Monitoring System
Model Name
-
Series
Satellite Communication Sector
Data
-
Manufacturer information
provider logo
AP SATELLITESatellite & Satellite Communication Device Manufacturer, Satellite Smartphone, Satellite Bus System Design and more
Problem with product info?
Update request
Manufacturer
AP SATELLITE
Brand
-
SKU
53708
Product Name
Telematics Monitoring System
Model Name
-
Size
-
Weight
-
Product Details

Using the GPS, terrestrial and satellite communication networks, vehicle status and location information can be sent to the remote server. User can monitor the vehicle’s present status via WEB system. TMS system provides the user the ability to manage and control the fleet more efficiently.

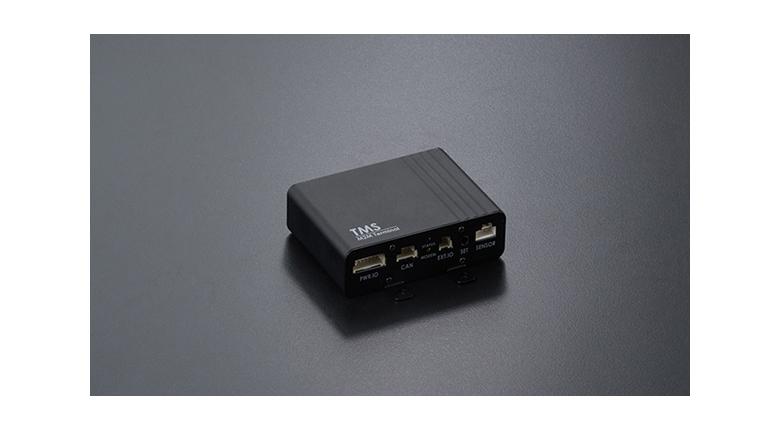

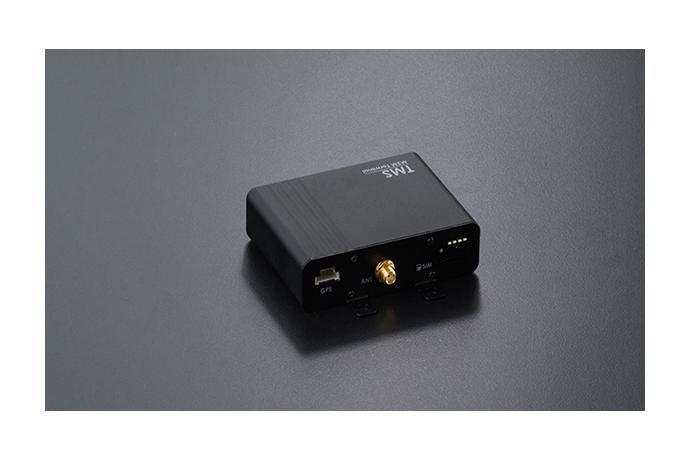

AP Satellite Telematics Monitoring System



ItemSpecificationDescription
ModelTMS-D100
ModemGSM/GPRS/EDGE : 850, 900, 1800, 1900
UMTS/HSPA : 800/850*, 900, AWS 1700, 1900, 2100 MHz
Global Modem
GPSSirF IVExternal
LED2 LEDsStatus, Modem
MechanicAluminum
Size88.0(W) x 64.0(L) x 23.8(H)Unit : mm
Operating Temp-20 ~ +65Unit : ℃
Operating Voltage+12 / +24Unit : Vdc
