Sat Trax
Model Name
-
Series
Satellite Communication Sector
Data
-
Manufacturer information
provider logo
AP SATELLITE

Satellite & Satellite Communication Device Manufacturer, Satellite Smartphone, Satellite Bus System Design and more

Problem with product info?
Update request
Manufacturer
AP SATELLITE
Brand
-
SKU
53707
Product Name
Sat Trax
Model Name
-
Size
-
Weight
-
Product Details

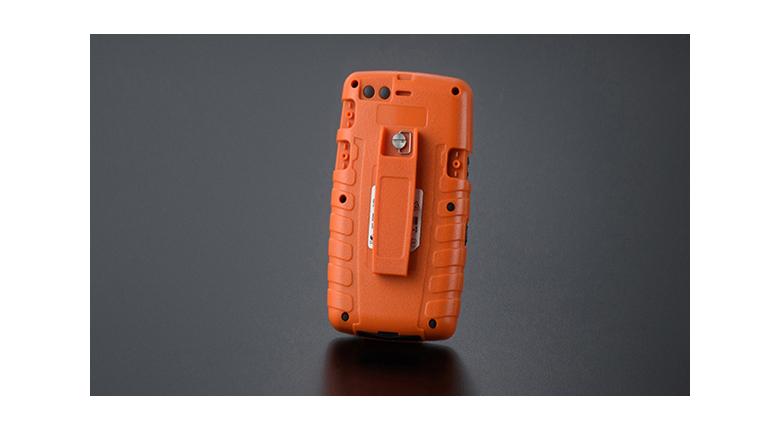

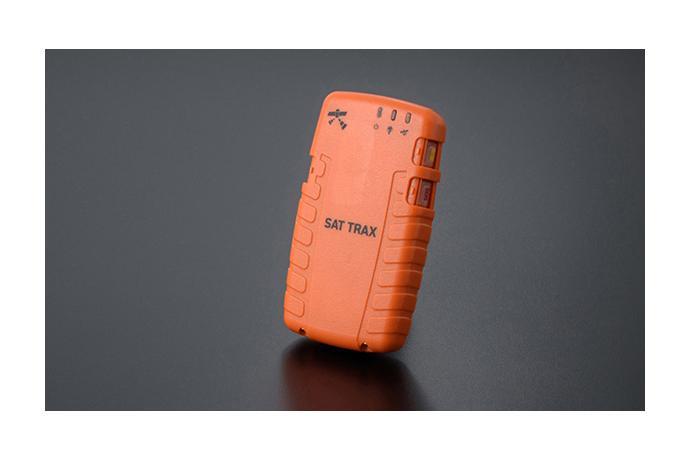

Sat Trax is a satellite location tracking device. It is designed and developed to save fishermen or sailors in case of maritime disasters or accidents. In case of an accident, Sat Trax is able to send GPS location with status information of the user to a preset number over SMS. Moreover, it is equipped with automatic water-sensor.

1.Send GPS information in programmable intervals (e.g. every 5mins.)

2.Tracking function.

3.Equipped with automatic water-sensor

4.Built-in patch antenna

5.Built-in high capacity rechargeable battery

6.Certified with an IP67 durability rating

7.Water resistant, dust and shockproof

8.Easy to be attached into a life vest

9.Slim and light



RF SpecificationsNetworkThuraya Satellite Network
SystemGMR-1, ETSI TS 101 376
Antenna TypePatch Type
GPS Sensitivity-158dBm
GPS Accurate≤±10m
FrequencyReceiver: 1525~1559 MHz
Transmitter: 1626.5~1660.5MHz
GeneralsCPUOMAP1510
Memory256/64Mbytes
I/OUART, USB, Charging, External Antennas Connectors
OSVxworks
Dimensions120 x 70 x 32, H x W x D (mm)
Weight (g)210 (except for belt clip)
Battery CapacityLi-ion Polymer 3.7V/2840mAh
Operating TimeOver 48 hrs (sending the message every 5 minutes)
OperationAutomatic On by water sensor or Manually On by user
Indication (LED)Power On, GPS Status, Network Status, Terminal Operating Status
Period of sending messageDefault 5 minutes, but programmable
EnvironmentalOperating Temperature ℃-30 to +60
Ingress ProtectionIP67
