Head Size | Tube Size(OD) |
Ordering Number |

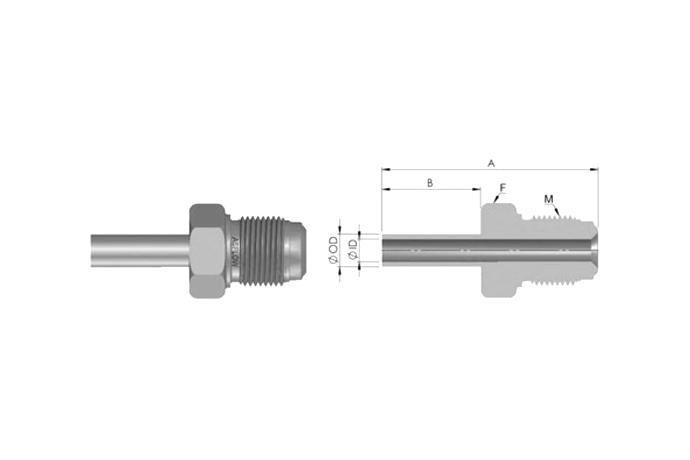

OD | ID | A | B | F | M | Working Pressure bar(psig) |
|
---|---|---|---|---|---|---|---|---|---|---|
NI | 316L | |||||||||
1/4″ | 1/4″ | AC-BWC04 | 6.35 | 4.35 | 42.67 | 19.05 | 15.9 | 9/16-18UNF | 351(5100) | |
1/2″ | 1/2″ | AC-BWC08 | 12.70 | 10.22 | 46.72 | 19.05 | 23.8 | 7/8-14UNF | 254(3700) | |
1/2″ | 1/4″ | AC-BWC08-04 | 6.35 | 4.35 | 46.72 | 19.05 | 23.8 | 7/8-14UNF | 254(3700) | |
1/2″ | 3/8″ | AC-BWC08-06 | 9.53 | 7.53 | 46.72 | 19.05 | 23.8 | 7/8-14UNF | 227(3300) |
