product Image
Male Union Elbow
Model Name
AC-MUE Series
Series
Metal Seal Fitting
Data
-
Manufacturer information
provider logo
ASFLOW

Semi conductor equipment and High purity valve for high purity gas line manufacturer, Fitting, Pipe, Tube, Valve, Regulator and more

Problem with product info?
Update request
Manufacturer
ASFLOW
Brand
-
SKU
53459
Product Name
Male Union Elbow
Model Name
AC-MUE Series
Size
-
Weight
-
Product Details

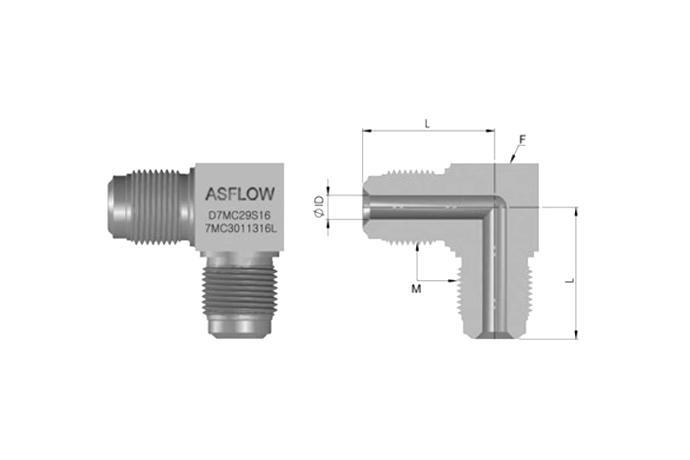

Head Size Ordering
Number
ID L F M Working Pressure
bar(psig)
NI 316L
1/4″ AC-MUE04 4.35 27.00 16.00 9/16-18UNF 551(8000) 689(10000)
1/2″ AC-MUE08 10.22 36.80 24.00 7/8-14UNF 241(3500) 296(4300)
3/4″ AC-MUE12 15.75 48.77 33.30 1 1/4-18UNEF 206(3000) 254(3700)
1″ AC-MUE16 22.10 50.80 42.80 1 1/2-20UN 165(2400) 206(3000)
ASFLOW
Semi conductor equipment and High purity valve for high purity gas line manufacturer, Fitting, Pipe, Tube, Valve, Regulator and more
ASFLOW Co., Ltd is a company specialized in the production of semiconductor equipments and high purity valves used for high purity gas lines. We are the leading material & components group in Korea which contributes to the industry. ASFLOW, first founded in May, 2000 has succeeded in the domestic production of high purity valves that were once available only through importation. With the provision of valves our company will expand not only in the domestic market, but also to China, Japan and Europe to affirm our brand image and further develop as the world leading company. Beginning with registering our tube, fitting valves with Samsung Electronics and Skhynics in 2005, we have expanded our lineup by adding valves and regulators and have produced new products such as filter and diffusers for a unique portfolio. ASFLOW will constantly develop by expanding internally through innovation and become a bigger business.
